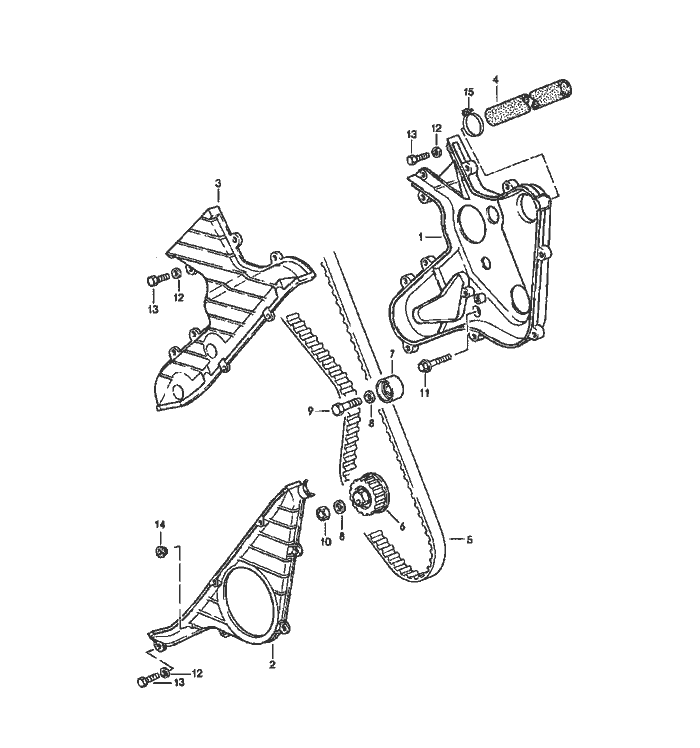

Porsche 944 Antrieb Ausgleichswelle Teile

Antrieb Ausgleichswelle


Pos__Part_Number__DescriptionRemarkQty.Model
  driving mechanism -86
  camshaft
1 944 105 045 04toothed belt covering  1
2 944 105 048 00toothed belt covering  1
3 944 105 047 00toothed belt covering  1
4 944 105 149 01hose  1 M44.05-08
4 951 105 149 03breather hose  1 M44.50/51
     M44.52
5 944 105 157 04toothed belt  1
6 944 105 027 04tensioning roller  1
7 944 105 273 02roller  1 WW
8 N 011 527 12washer  2
  A 10,5
9 900 075 111 08hexagon-head bolt  1
  M 10 X 35
10 N 022 149 2lock nut  1
  M 10
11 900 075 344 02hexagon-head bolt  2
  M 6 X 50
12 N 011 524 7washer  11
  A 6,4
13 999 072 005 09hexagon-head bolt  11
  M 6 X 12
14 999 703 164 40stopper  1
15 999 512 252 02hose clamp  2 M44.50/51
     M44.52
  LA 23 -35
