Porsche 944 Antrieb Ausgleichswelle Teile

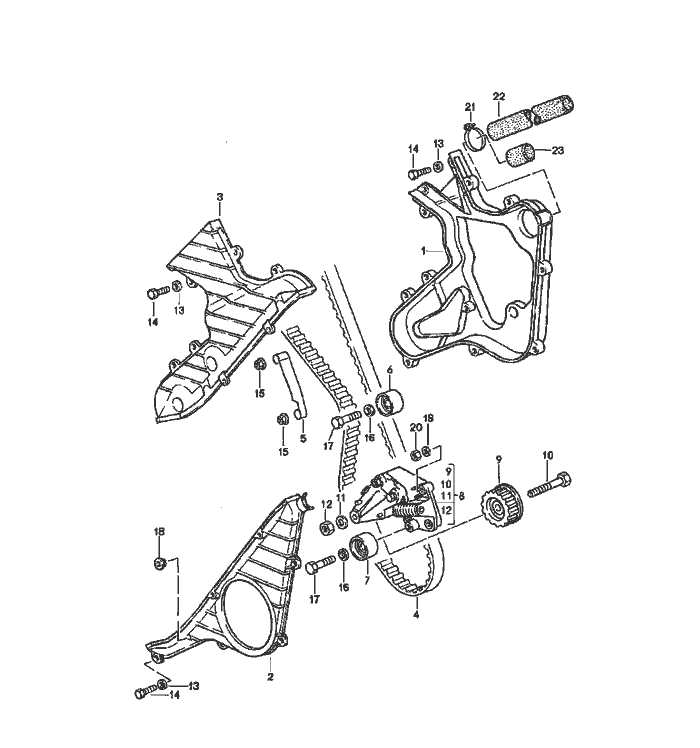

Antrieb Ausgleichswelle


Pos__Part_Number__DescriptionRemarkQty.Model
  driving mechanism 87
  camshaft
1 944 105 039 02toothed belt covering  1 M44.05-10
     M44.51/52
1 944 105 033 02toothed belt covering  1 M44.40
2 944 105 037 00toothed belt covering  1
3 944 105 041 01toothed belt covering  1 M44.05-10
     M44.51/52
3 944 105 035 01toothed belt covering  1 M44.40
4 944 105 157 04toothed belt  1 M44.05-10
     M44.51/52
4 944 105 323 02toothed belt  1 M44.40
5 944 105 213 01securing clip  1
6 944 105 241 03roller  1
7 944 105 241 02roller  1 M44.40
8 944 105 067 14tensioner for toothed belt  1 M44.05/10
     M44.51/52
8 944 105 067 09tensioner for toothed belt  1 M44.40
9 944 105 631 04tensioning roller  1 M44.05-10
     M44.51/52
9 944 105 631 10tensioning roller  1 M44.40
10 N 010 445 2hexagon-head bolt  1
  M 10 X 45
11 900 025 008 09washer  1
12 900 910 034 02lock nut  1
  M 10  1
13 N 011 524 7washer  11
14 999 072 005 09hexagon-head bolt  11
  M 6 X 12
15 999 084 092 02lock nut  2
16 900 025 008 09washer  2

Pos__Part_Number__DescriptionRemarkQty.Model
17 900 075 043 02hexagon-head bolt  2
  M 10 X 30
18 999 703 164 40stopper  1
19 900 025 007 02washer  3
20 900 076 025 02hexagon nut  3
21 999 512 252 02hose clamp  1
22 944 105 149 01hose  1 M44.05-10
22 951 105 149 03breather hose  1 M44.51
22 944 110 218 00breather hose  1 M44.40
23 944 106 103 03cap  1
