Porsche 944 Reperatur Kits Teile

Reperatur Kits

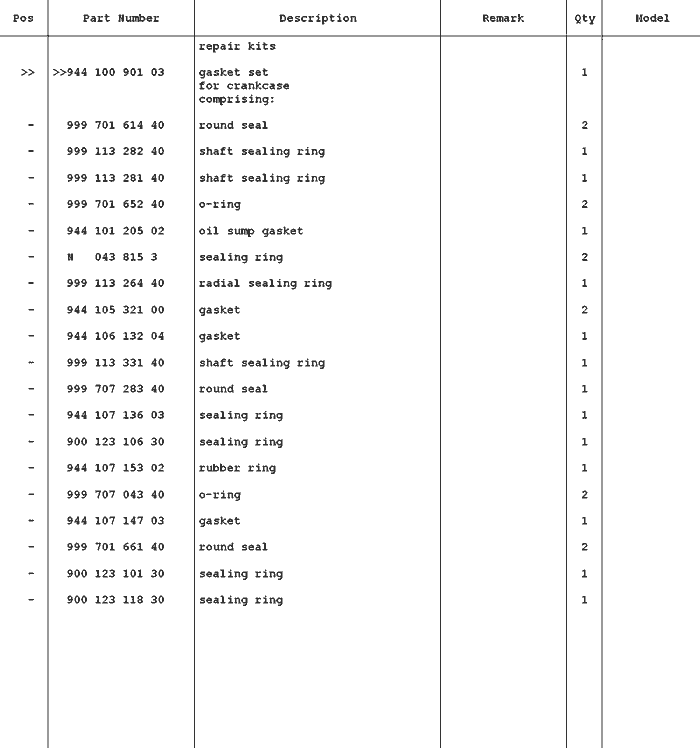

Pos__Part_Number__DescriptionRemarkQty.Model
  repair kits
>> 944 100 901 03gasket set  1
  for crankcase
  comprising:
-999 701 614 40round seal  2
-999 113 282 40shaft sealing ring  1
-999 113 281 40shaft sealing ring  1
-999 701 652 40o-ring  2
-944 101 205 02oil sump gasket  1
-N 043 815 3sealing ring  2
-999 113 264 40radial sealing ring  1
-944 105 321 00gasket  2
-944 106 132 04gasket  1
-999 113 331 40shaft sealing ring  1
-999 707 283 40round seal  1
-944 107 136 03sealing ring  1
-900 123 106 30sealing ring  1
-944 107 153 02rubber ring  1
-999 707 043 40o-ring  2
-944 107 147 03gasket  1
-999 701 661 40round seal  2
-900 123 101 30sealing ring  1
-900 123 118 30sealing ring  1
-951 107 241 02sealing ring  1
-900 123 007 30sealing ring  1
>> 944 100 901 00gasket set  1 M44.05-10
  for cylinder head
  comprising:
-951 104 374 02cylinder head gasket  1

Pos__Part_Number__DescriptionRemarkQty.Model
-928 104 193 12valve stem seal  8
-928 111 193 12gasket  4
-928 105 199 12gasket  1
-944 110 163 02gasket  4
-928 106 197 01gasket  1
-944 104 311 01gasket  1
-928 105 184 00sealing ring  1
-999 701 602 40o-ring  1
-999 113 282 40shaft sealing ring  1
-928 105 189 02gasket  1
-944 105 321 00gasket  1
-900 123 140 30sealing ring  6
-999 701 468 40round seal  1
-944 111 135 01gasket  2
>> 944 101 901 00set of crankshaft bearings  1
  comprising:
-928 101 117 08main bearing bush i  1
-928 101 115 02main bearing shell  3
 002upper
-928 101 115 01main bearing shell  3
  lower
-944 101 139 00thrust bearing  2
 002
>> 928 101 901 52set of crankshaft bearings  1
  undersize 0.25 mm
  comprising:
-928 101 117 58main bearing bush i  1
-928 101 115 50main bearing shell  3
  upper

Pos__Part_Number__DescriptionRemarkQty.Model
-928 101 115 51main bearing shell  3
  lower
-928 101 133 53thrust bearing  2
>> 928 101 901 62set of crankshaft bearings  1
  undersize 0.50 mm
  comprising:
-928 101 117 68main bearing bush i  1
-928 101 115 60main bearing shell  3
  upper
-928 101 115 61main bearing shell  3
  lower
-928 101 133 63thrust bearing  2
>> 951 100 901 00gasket set  1 M44.51/52
  for cylinder head
  comprising:
-951 104 374 02cylinder head gasket  1
-951 104 195 01valve stem seal  8
-944 111 196 00gasket  4
-928 105 199 12gasket  1
-944 110 163 05gasket  4
-928 106 197 01gasket  1
-944 104 311 01gasket  1
-951 104 311 01gasket  1
-928 105 184 00sealing ring  1
-999 701 602 40o-ring  1
-999 113 349 40shaft sealing ring  1
-928 105 189 02gasket  1
-944 105 321 00gasket  1
-900 123 140 30sealing ring  6
-999 701 331 40round seal  1

Pos__Part_Number__DescriptionRemarkQty.Model
-944 111 205 04sealing ring  2
>> 944 100 901 04gasket set  1 M44.40
  for cylinder head
  comprising:
-951 104 374 02cylinder head gasket  1
-928 104 601 07valve stem seal  16
-944 104 305 03gasket  1
-944 104 302 03gasket  1
-928 106 167 01gasket  1
-N 043 811 1sealing ring  1
-928 104 447 09gasket  1
-999 113 282 40shaft sealing ring  1
-900 123 050 30sealing ring  4
-900 174 056 40o-ring  2
-928 104 115 02thrust ring  13
-944 110 305 02gasket  1
-999 701 331 40round seal  1
-944 111 205 00sealing ring  4
-944 111 135 01gasket  2
>> 944 103 902 82set of piston rings  4 M44.05-10
     M44.40
  100,00 MM
>> 944 103 902 92set of piston rings  4 M44.05-10
     M44.40
  100,50 MM
>> 951 103 901 02set of piston rings  4 M44.50/51
     M44.52
  100,00 MM
>> 951 103 901 03set of piston rings  4 M44.50/51
     M44.52
  100,50 MM

Pos__Part_Number__DescriptionRemarkQty.Model
>> 951 100 930 00maintenance parts  1 M44.50/51
     M44.52
  for
  periodic maintenance
  comprising:
-944 107 201 03oil filter  1
-951 110 121 01air cleaner cartridge  1
-928 110 253 06fuel filter  1
-900 123 118 30sealing ring  1
-999 170 156 90spark plug  4
>> 944 100 930 00maintenance set  1 M44.05-10
  for
  periodic maintenance
  comprising:
-944 107 201 03oil filter  1
-944 110 186 02air cleaner cartridge  1
-928 110 253 06fuel filter  1
-900 123 118 30sealing ring  1
-999 170 156 90spark plug  4
>> 944 100 930 02maintenance parts  1 M44.40
  for
  periodic maintenance
  comprising:
-944 107 201 03oil filter  1
-944 110 188 00air cleaner cartridge  1
-928 110 253 06fuel filter  1
-900 123 118 30sealing ring  1
-999 170 156 90spark plug  4
>> 944 110 901 00gasket set  4
  for
  injector valve
