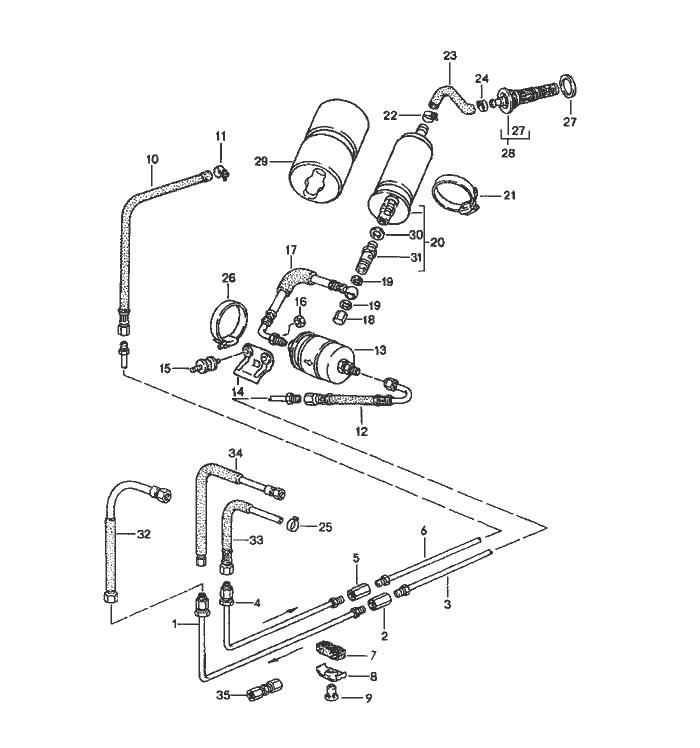

Porsche 944 Kraftstoff System Teile

Kraftstoff System


Pos__Part_Number__DescriptionRemarkQty.Model
  fuel system   M44.40
1 944 356 969 10fuel line  1
2 477 209 169connecting piece  1
3 951 356 967 02fuel line  1
4 944 356 937 10fuel return line  1
5 477 209 161connecting piece  1
6 951 356 935 02fuel return line  1
7 999 591 975 40rubber mounting  9
8 999 511 199 40clamp  9
9 999 511 199 40clamp  9
10 951 356 061 02fuel hose  1
11 N 023 569 2hose clamp  1
12 951 356 047 03fuel hose  1
13 928 110 253 06fuel filter  1
14 951 356 471 01support  1
15 944 610 115 00bonded rubber mounting  2
16 900 076 010 02hexagon nut  1
17 951 356 041 07fuel line  1
18 928 110 475 01cap nut  1
19 N 013 812 2sealing ring  2
20 944 608 102 06fuel pump  1
21 999 512 397 00hose clamp  1
22 999 512 554 00hose clamp  1
23 951 356 557 00fuel hose  1
24 999 512 346 00hose clamp  1
25 N 023 577 2hose clamp  1
26 999 512 390 00hose clamp  1

Pos__Part_Number__DescriptionRemarkQty.Model
27 928 201 187 02sealing ring  1
28 928 201 081 04fuel filter  1
29 944 356 091 00housing  1
30 N 013 812 3sealing ring  1
31 944 608 951 01check valve  1
32 944 356 029 12fuel hose  1
33 944 356 027 11fuel hose 87 1
34 944 356 027 14fuel hose 881
