Porsche 944 Auspuff System Teile

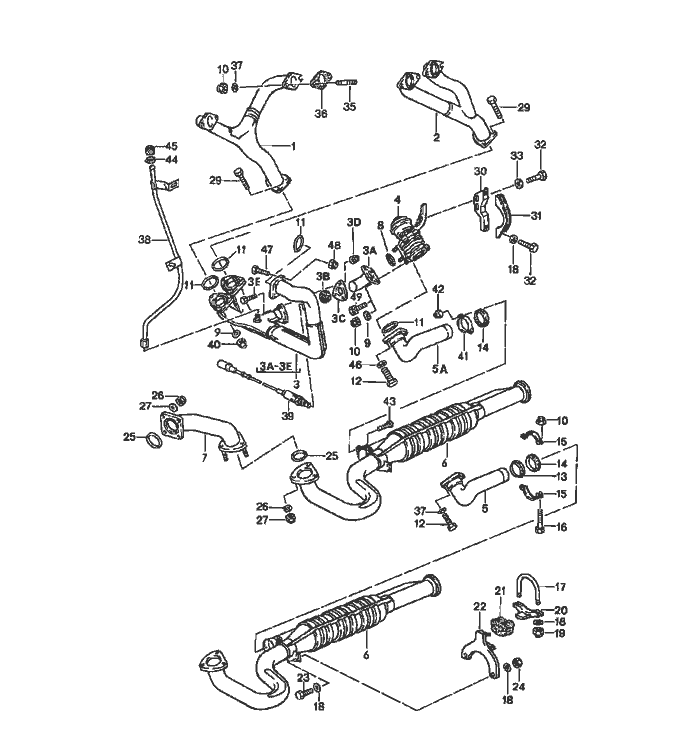

Auspuff System


Pos__Part_Number__DescriptionRemarkQty.Model
  exhaust system   M44.50/51
     M44.52
  catalytic converter
  see technical information
1 951 111 131 06exhaust manifold  1
  cylinders 1 and 4
2 951 111 133 04exhaust manifold  1
  cyl. 2 and 3
3 951 111 096 15exhaust pipe  1
3A 951 123 027 00exhaust pipe  1
3B 930 123 134 04gasket  1
3C 951 123 260 01flange  1
3D 999 084 051 02lock nut  3
3E 900 074 267 02hexagon-head bolt  3
4 951 123 015 04wastegate  1
5 951 123 040 05exhaust pipe  1
  F >>95GN1 50060
5A 951 123 040 06exhaust pipe  1
  F 95GN1 50061>>
6 951 111 094 11catalytic converter  1
  use also:
  F >>95GN1 50060
  951.123.040.06  1
  951.123.138.01  1
  900.910.096.02  2
  900.074.234.02  2
7 951 111 098 01exhaust pipe  1
8 993 111 195 00sealing ring  1
9 999 025 078 02washer  X
10 999 084 052 02lock nut  10
11 944 111 205 04sealing ring  4
12 900 075 079 02hexagon-head bolt  4
  M 8 X 25

Pos__Part_Number__DescriptionRemarkQty.Model
13 951 123 139 00support washer  1
14 951 123 134 02gasket  1
14 951 123 134 02gasket  1
  without asbestos
15 951 123 135 00clamp
16 900 074 268 02hexagon-head bolt  2
  BM 8 X 40
17 477 253 139clip  1
18 900 025 007 02washer  6
19 900 910 003 02lock nut  2
20 944 111 307 00support  1
21 944 111 142 01rubber mounting  1
22 951 111 061 01hook  1
23 900 075 087 02hexagon-head bolt  2
  M 8 X 15
24 900 076 025 02hexagon nut  2
25 944 111 205 03sealing ring  2
26 999 084 047 02lock nut  8
27 900 025 008 09washer  8
28 900 074 284 02hexagon-head bolt  4
  M 10 X 40
29 900 074 268 02hexagon-head bolt  6
30 951 123 155 02support  1
31 951 123 179 02clip  1
32 900 075 085 02hexagon-head bolt  2
  M 8 X 20
33 900 223 001 02washer  2
34 900 075 085 02hexagon-head bolt  2
  M 8 X 20
35 999 062 044 02stud  8

Pos__Part_Number__DescriptionRemarkQty.Model
36 944 111 196 00gasket  4
36 944 111 196 01gasket  4
  without asbestos
37 928 111 181 00washer  4
38 951 111 175 02exhaust emission tube  1
39 951 606 135 00oxygen sensor  1
40 999 084 052 02lock nut  6
41 951 123 138 01flange  1
42 900 910 096 02lock nut  2
  M 6
43 900 074 234 02hexagon-head bolt  2
  M 6 X 40
44 999 512 160 02hose clamp  1
45 034 133 335 Dcap  1
46 N 012 009 1lock ring  1
47 N 010 020 2hexagon-head bolt  4
48 N 900 730 01lock nut  3
49 900 075 420 02hexagon-head bolt  4
