Porsche 944 Central Tube Teile

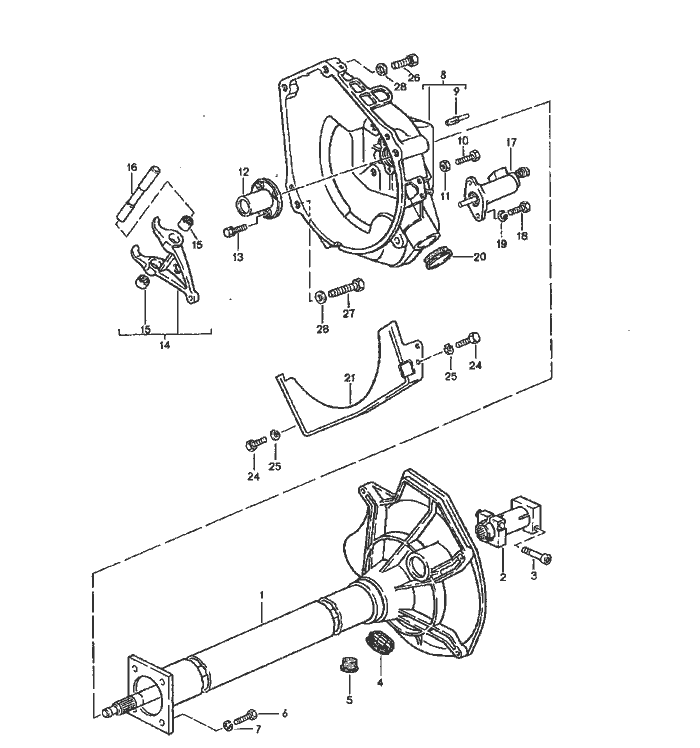

Central Tube


Pos__Part_Number__DescriptionRemarkQty.Model
  central tube
  manual transmission
1 944 421 012 02central tube  1
  ready for installation
2 W 922 421 051 02clamping sleeve  1
2 922 421 051 02clamping sleeve  1
3 931 421 240 00clamping Schraube  4
4 477 521 277 Ccap  1
5 477 521 177cap  1
6 N 010 275 4hexagon-head bolt  4
  M 10 X 35
7 N 012 028 1lock ring  4
  10
8 944 116 043 06clutch housing -86 1 944
8 A 944 116 043 06clutch housing 87 1 944
8 944 116 043 06clutch housing  1 944
8 A 951 116 043 00clutch housing 86 1 TURBO
8 A 951 116 043 02clutch housing 87 1 TURBO
8 951 116 043 02clutch housing  1 TURBO
9 N 012 690 1grooved pin  3
  10 X 32
10 N 010 221 3hexagon-head bolt  1
  M 6 X 35
11 900 076 010 02hexagon nut  1
  M 6
12 016 141 181guide sleeve  1
13 N 090 194 2hexagon-head bolt  3
  M 7 X 16
14 931 116 085 00clutch release lever  1 944
14 951 116 085 00clutch release lever  1 TURBO
15 999 201 213 00needle sleeve  2

Pos__Part_Number__DescriptionRemarkQty.Model
16 951 116 133 00clutch control shaft  1
17 944 116 237 00clutch operating cylinder  1
-* 928 116 901 00repair kit clutch operating cylinder  1
18 N 010 233 6hexagon-head bolt M 8 X 28  2
19 900 027 015 02lock ring B 8  2
20 931 116 177 00cap  1
21 944 116 093 01protective plate  1
24 900 075 040 02hexagon-head bolt M 10 X 20  2
25 N 012 028 1lock ring A 10  2
26 N 010 142 2hexagon-head bolt M 12 X 50  2
27 N 010 191 2hexagon-head bolt M 12 X 95  2
28 N 011 531 7washer A 13  4
