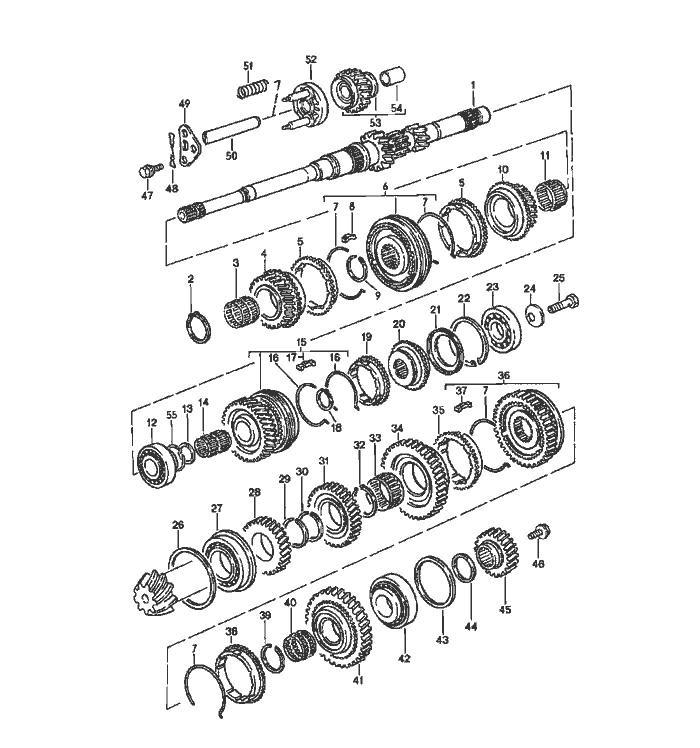

Porsche 944 Gears und Shafts Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		gears and shafts			5P 5R UY 9U
		manual transmission			AGP AGR AOR
1	016 311 105 AL	drive shaft		1
1	A 016 311 105 AL	drive shaft		1	AOR
1	016 311 105 AL	drive shaft		1	AOR
2	016 311 344	circlip		1
3	016 311 115	needle-roller bearing		1
		4-speed
4	016 311 347 A	shifting gear		1
		4-speed
5	016 311 295	synchroniser ring		2
		3rd/4th gear
6	016 311 301 B	synchronising hub		1
		3rd/4th gear
		with
		operating sleeve
7	088 311 311 D	spring		4
8	088 311 245	detent		3
		3rd/4th gear
9	088 311 317	circlip		1
		1,50
9	088 311 317 B	circlip		X
		1,56
9	088 311 317 C	circlip		X
		1,62
10	016 311 279	shifting gear		1
		3rd gear
11	016 311 213 H	needle-roller bearing		1
		3rd gear
12	016 311 427 C	cylindrical-roller bearing		1
13	016 311 155 B	thrust washer		1
14	016 311 116 A	needle-roller bearing		1
		4th speed

Pos	__Part_Number__	Description	Remark	Qty.	Model
15	016 311 353 K	shifting gear		1
		5th gear
16	014 311 311 C	spring		2
17	016 311 246	detent		3
		5th gear
18	N 900 607 01	circlip		1
		A 27 X 1,9
19	014 311 295 E	synchroniser ring		1
		5th gear
20	016 311 192 A	clutch hub		1
		5th gear
21	016 311 449	dust plate		1
22	N 900 608 01	circlip		1
		A 68 X 2,83
22	N 900 608 02	circlip		X
		A 68 X 2,90
23	016 311 445	four-point bearing		1
24	016 311 324	cup spring		1
25	020 311 308 C	Schraube		1
26	016 311 391 E	shim		1
		0,20
26	016 311 391 F	shim		X
		0,25
26	016 311 391 G	shim		X
		0,30
26	016 311 391 H	shim		X
		0,35
26	016 311 391 J	shim		X
		0,40
26	016 311 391 K	shim		X
		0,65
26	016 311 391 L	shim		X
		0,90

Pos	__Part_Number__	Description	Remark	Qty.	Model
26	016 311 391 M	shim		X
		1,15
27	016 311 220 L	taper roller bearing		1
28	016 311 149 K	gear wheel
		4th speed
29	016 311 363 AA	circlip		1
		2,24
29	016 311 363 AB	circlip		X
		2,26
29	016 311 363 AC	circlip		X
		2,28
29	016 311 363 AD	circlip		X
		2,30
29	016 311 363 AE	circlip		X
		2,32
29	016 311 363 AF	circlip		X
		2,34
29	016 311 363 AG	circlip		X
		2,36
29	016 311 363 AH	circlip		X
		2,38
29	016 311 363 AJ	circlip		X
		2,40
30	016 311 363 AJ	circlip		1
		2,40
31	016 311 131 G	gear wheel		1
		3rd gear
32	016 311 287	circlip		1
		1,65
32	016 311 287 A	circlip		X
		1,70
32	016 311 287 B	circlip		X
		1,75
33	016 311 229 A	needle-roller bearing		1
		2nd gear

Pos	__Part_Number__	Description	Remark	Qty.	Model
34	016 311 265 B	shifting gear 2nd gear		1
35	016 311 295	synchroniser ring 2nd gear		1
36	016 311 239 E	synchronising hub 1st/2nd gear		1
37	088 311 313	detent 1st/2nd gear		3
38	016 311 247	synchroniser ring		1
39	016 311 327	circlip 1,50		1
39	016 311 327 A	circlip 1,55		X
39	016 311 327 B	circlip 1,60		X
40	016 311 207 A	needle-roller bearing 1st gear		1
41	016 311 257 C	shifting gear 1st gear		1
42	016 311 375 F	taper roller bearing G >> 5P 29 03 7 G >> 5R 29 03 7 G >> UY 29 03 7 G >> 9U 29 03 7 G >>AGP 29 03 7 G >>AGR 29 03 7		1
42	016 311 375 H	taper roller bearing G 5P 30 03 7 >> G 5R 30 03 7 >> G UY 30 03 7 >> G 9U 30 03 7 >> G AGP 30 03 7>> G AGR 30 03 7>> G AOR 30 03 7>>		1
43	016 311 393	shim 0,24		1
43	016 311 393 A	shim 0,27		X

Pos	__Part_Number__	Description	Remark	Qty.	Model
43	016 311 393 B	shim		X
		0,30
43	016 311 393 C	shim		X
		0,33
43	016 311 393 D	shim		X
		0,36
43	016 311 393 E	shim		X
		0,39
43	016 311 393 F	shim		X
		0,42
43	016 311 393 G	shim		X
		0,45
43	016 311 393 H	shim		X
		0,69
43	016 311 393 J	shim		X
		0,93
43	016 311 393 K	shim		X
		1,17
43	016 311 393 L	shim		X
		1,41
		G 5P 30 03 7 >>
		G 5R 30 03 7 >>
		G UY 30 03 7 >>
		G 9U 30 03 7 >>
		G AGP 30 03 7>>
		G AGR 30 03 7>>
		G AOR 30 03 7>>
43	016 311 393 AP	shim		X
		0,24
43	016 311 393 AQ	shim		X
		0,27
43	016 311 393 AR	shim		X
		0,30
43	016 311 393 AS	shim		X
		0,33
43	016 311 393 M	shim		X
		0,36

Pos	__Part_Number__	Description	Remark	Qty.	Model
43	016 311 393 N	shim		X
		0,39
43	016 311 393 P	shim		X
		0,42
43	016 311 393 Q	shim		X
		0,45
43	016 311 393 R	shim		X
		0,69
43	016 311 393 S	shim		X
		0,93
43	016 311 393 T	shim		X
		1,17
43	016 311 393 AA	shim		X
		1,41
44	016 311 391	adjusting shim		1
		1,10
44	016 311 391 A	adjusting shim		X
		1,40
44	016 311 391 B	adjusting shim		X
		1,70
44	016 311 391 C	adjusting shim		X
		2,00
44	016 311 391 D	adjusting shim		X
		2,30
45	016 311 159 T	gear wheel		1
		5th gear
46	N 902 582 01	clamping Schraube		1
47	088 301 291 A	shouldered bolt		1
48	016 311 861 C	spring		1
49	016 311 853 B	retainer plate		1
50	016 311 519 B	reverse idler gear shaft		1
51	016 311 859 C	compression spring		1
52	016 311 839 C	synchroniser ring		1

Pos	__Part_Number__	Description	Remark	Qty.	Model
53	016 311 529 D	reverse idler gear		1
54	088 311 533	bush		1
55	016 311 287 C	circlip		1
