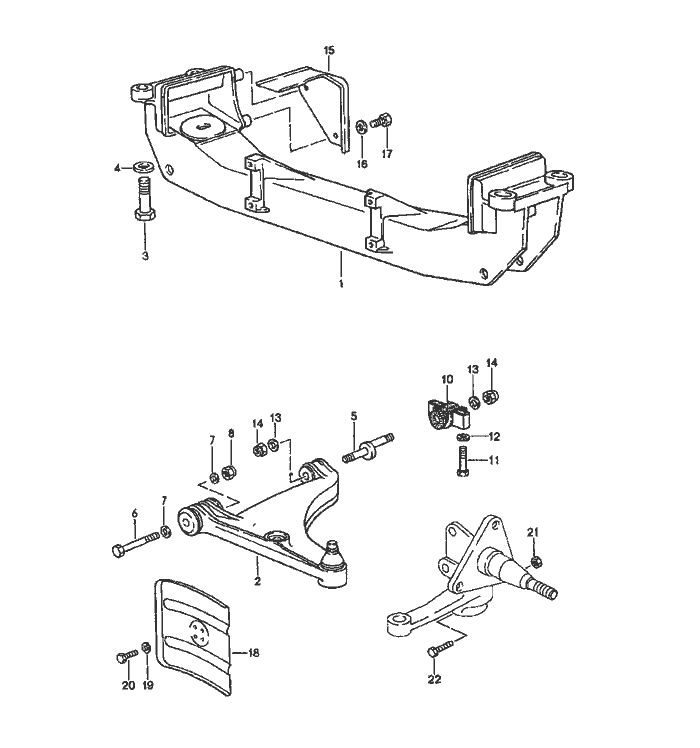

Porsche 944 Wishbone Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		wishbone
		cross member
1	944 341 103 07	cross member	Left Hand Drive		1
2	951 341 027 00	wishbone	Left	-86	1
2	951 341 028 00	wishbone	Right	-86	1
2	944 341 027 02	wishbone	Left	87	1
2	944 341 028 02	wishbone	Right	87	1
2	944 341 927 31	wishbone	Left	87	1	M 030/758
2	944 341 928 31	wishbone	Right	87	1	M 030/758
3	N 010 183 1	hexagon-head bolt			4
		M 12 X 75
4	999 025 074 02	washer			4
		12,4 X 34 X 5
5	951 341 431 02	eccentric bolt			2
6	900 082 039 02	hexagon-head bolt			2
		M 12 X 1,5 X 100
7	900 025 009 02	washer			2
		A 13
8	N 021 131 1	lock nut			2
		M 12 X 15
10	951 341 023 00	rubber mounting			2
10	951 341 023 30	rubber mounting			2	M 030/758
11	N 040 321 1	hexagon-head bolt			4
		M 10 X 65
12	900 223 011 02	washer			4
13	900 223 010 02	washer			4
14	N 021 131 1	lock nut			4
15	951 341 108 02	heat protection plate	Left Hand Drive		1
(15)	951 341 107 00	heat protection plate	Left Hand Drive		1	TURBO
16	N 011 524 7	washer			2
		A 6

Pos	__Part_Number__	Description	Qty.	Model
17	N 010 215 13	hexagon-head bolt M 6 X 15	2
18	951 341 590 00	air baffle plate	2	TURBO
19	N 011 666 7	washer B 6,4	8	TURBO
20	999 072 005 09	hexagon-head bolt M 6 X 12	8	TURBO
21	N 021 130 2	lock nut VM 10	2
22	N 010 445 6	hexagon-head bolt M 10 X 45 X 20	2
