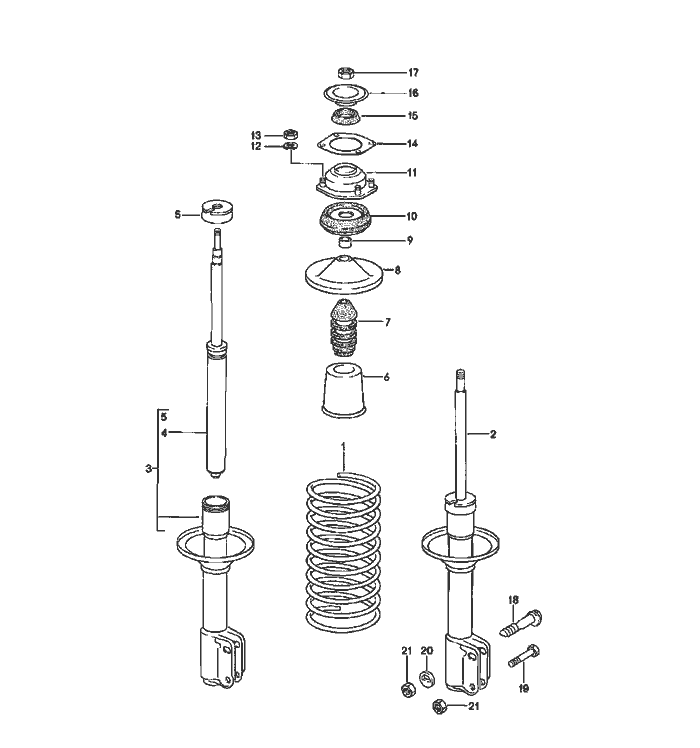

Porsche 944 Aufhängung Stoßdämpfer Vorder Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		suspension shock absorber front
		see technical information GR.4, NR.2/92
1	477 411 105 Q	coil spring 1 set identification			1	944
	954	blue
1	951 343 531 00	coil spring 1 set identification			1	944S
	904	white
1	951 343 531 01	coil spring 1 set identification			1	TURBO 944S,M 474
	104	yellow
1	477 411 105 G	coil spring 1 set identification		-86	1	944,M 030
	954	red
1	944 343 531 00	coil spring 1 set identification		87	1	944/944S M 030
	954	white blue
1	944 343 531 01	coil spring 1 set identification		87	1	TURBO,M 030 M 758
	104	white yellow
2	944 343 031 12	shock absorber -fichtel + sachs -	Left	-86	1	944
2	944 343 032 12	shock absorber -fichtel + sachs -	Right	-86	1	944
2	944 343 031 17	shock absorber -fichtel + sachs -	Left	87	1	944/944S

Pos	__Part_Number__	Description	Remark	Qty.	Model
2	944 343 032 17	shock absorber	Right	87	1	944/944S
		-fichtel + sachs
2	951 343 031 05	shock absorber	Left		1	TURBO
		-fichtel + sachs
2	951 343 032 05	shock absorber	Right		1	TURBO
		-fichtel + sachs
3	944 343 031 11	shock absorber	Left	-86	1	944,M 474
		-koni
3	944 343 032 11	shock absorber	Right	-86	1	944,M 474
		-koni
3	951 343 031 06	shock absorber	Left		1	M 474
		-koni -				TURBO
3	951 343 032 06	shock absorber	Right		1	M 474
		-koni -				TURBO
3	944 343 051 00	shock absorber	Left	-86	1	944,M 030
		-koni
3	944 343 052 00	shock absorber	Right	-86	1	944,M 030
		-koni
3	951 343 031 32	shock absorber	Left	87	1	M 030
		-koni
3	951 343 032 32	shock absorber	Right	87	1	M 030
		-koni
		use also:
-	951 343 524 00	adjusting nut			1
-	951 343 525 32	concave washer			1
4	944 343 059 00	shock absorber		-86	2	944,M 474
		insert
		-koni
5	171 412 045	union nut			2
6	171 412 135	boot		-86	2	944
6	431 412 135	boot		87	2	944/944S
6	431 412 135	boot			2	TURBO
6	951 343 529 30	boot			2	M 030
7	171 412 303 C	rubber stop		-86	2	944

Pos	__Part_Number__	Description	Remark	Qty.	Model
7	951 343 527 00	rubber stop	87	2	944/944S
(7)	951 343 527 00	rubber stop		2	TURBO
8	133 412 341	concave washer		2
9	823 412 365	spacer sleeve		2
10	944 343 071 00	suspension strut mounting	-86	2
11	477 412 345	bearing flange	-86	2
11	951 343 018 04	suspension strut mounting	87	2
11	951 343 018 30	suspension strut mounting	87	2	M 030
-	944 343 903 01	insulation		2
		for
		suspension strut mounting
12	N 012 228 3	spring washer		8
		B 12
13	N 011 008 8	hexagon nut		8
		M 8
(14)	133 412 367	sealing ring		2
15	477 412 411	stop ring	-86	2
16	477 412 147	stop	-86	2
17	N 022 150 1	lock nut		2
		VM 14 X 1,5
18	171 407 265	eccentric Schraube		2
19	900 082 058 02	hexagon-head bolt		2
		M 12 X 1,5 X 50
20	944 343 175 00	eccentric washer		2
21	N 022 141 4	lock nut		4
		VM 12 X 1,5
-	999 703 346 40	stopper		2
