Porsche 944 Vibration Damper Teile

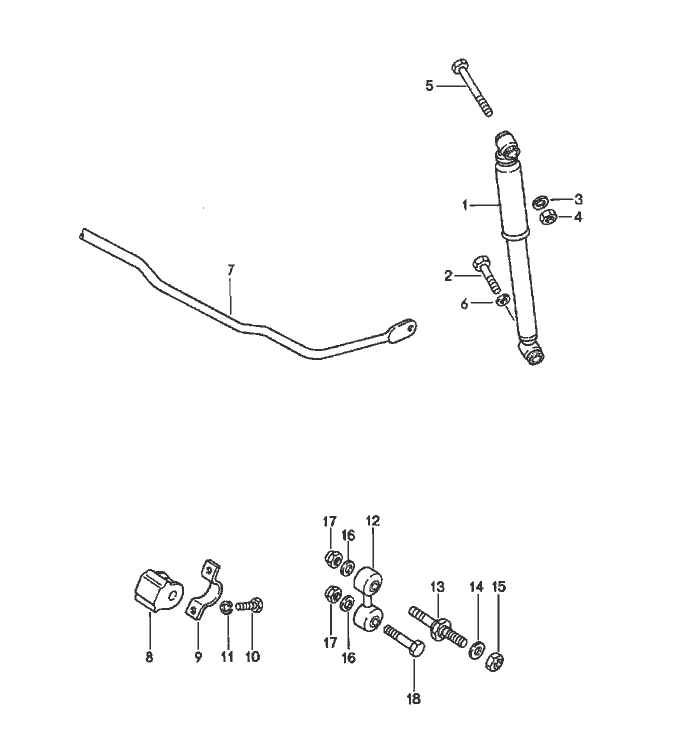

Pos	__Part_Number__	Description	Remark	Qty.	Model
		vibration damper
		stabiliser
1	951 333 032 05	vibration damper		2	944/944S
		-fichtel + sachs
1	951 333 032 06	vibration damper		2	TURBO
		-fichtel + sachs -
(1)	951 333 032 01	vibration damper		2	M 474
		-koni
1	951 333 032 04	vibration damper		2	M 030
		-koni
2	900 082 054 02	hexagon-head bolt		2
		M 14 X 1,5 X 85
3	043 101 129	washer		2
		B 12
4	N 022 141 1	lock nut		2
		M 12 X 1,5
5	900 082 044 02	hexagon-head bolt		2
		M 12 X 1,5 X 125
6	999 025 062 02	washer		2
		stabiliser
7	477 511 411 A	stabiliser		1
		$ 14 MM
7	477 511 413	stabiliser		1
		$ 18 MM
7	477 511 415	stabiliser		1
		$ 20 MM
8	477 411 313 F	rubber mounting		2
		$ 14 MM
8	477 411 313 B	stabiliser mounting		2
		$ 18 MM
8	477 411 313 C	stabiliser mounting		2
		$ 20 MM
9	113 411 333	retaining bow		2
10	900 075 085 02	hexagon-head bolt		4
		M 8 X 20

Pos	__Part_Number__	Description	Remark	Qty.	Model
11	900 027 015 02	lock ring B 8		4
12	477 511 051 A	stabiliser mounting		2
13	477 511 515	camber eccentric		2
14	N 011 531 4	washer A 13		2
15	N 022 141 4	lock nut M 12 X 1,5		2
16	900 025 008 09	washer A 10,5		4
17	N 022 149 2	lock nut M 10		4
18	N 010 452 4	hexagon-head bolt M 10 X 52		2
