Porsche 944 Disc Bremse Teile

Disc Bremse

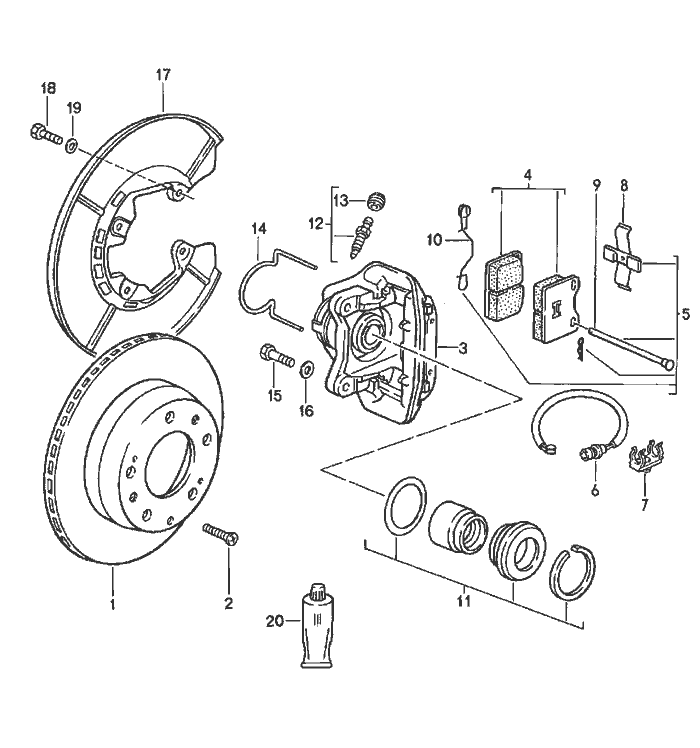

Pos__Part_Number__DescriptionRemarkQty.Model
  disc brake    944,944S
  rear axle
1 944 352 041 02brake disc  -86 2
1 944 352 041 03brake disc  872
2 N 033 167 1countersunk-head Schraube   2
  M 6 X 12
3 944 352 429 00floating calliper Left 1
  without pad
3 944 352 430 00floating calliper Right 1
  without pad
4 944 352 951 02brake pad repair set   1
  without asbestos
5 944 352 952 00mounting parts   1
6 944 612 211 01warning contact  -86 2
6 944 612 212 01warning contact  872
7 999 651 203 40cable holder   2
8 * 928 352 935 00expanding spring   2
9 * 928 351 936 00retaining pin   4
10 944 352 963 00safety seal   2
11 * 928 352 941 00gasket set   2
12 901 352 977 10bleeder valve   2
13 901 351 927 10dust boot   2
14 944 352 954 00guide spring Right 1
(14) 944 352 953 00guide spring Left 1
15 900 082 077 02hexagon-head bolt   4
  M 12 X 1,5 X 37
16 N 012 232 1spring washer   4
17 964 352 801 00protective plate   2
18 999 072 005 09hexagon-head bolt   8
  M 6 X 12

Pos__Part_Number__DescriptionRemarkQty.Model
19 N 012 226 5spring washer  8
  B 8
20 000 043 117 00brake cylinder paste  X
  1 50-g tube
