Porsche 944 Disc Bremse Teile

Disc Bremse

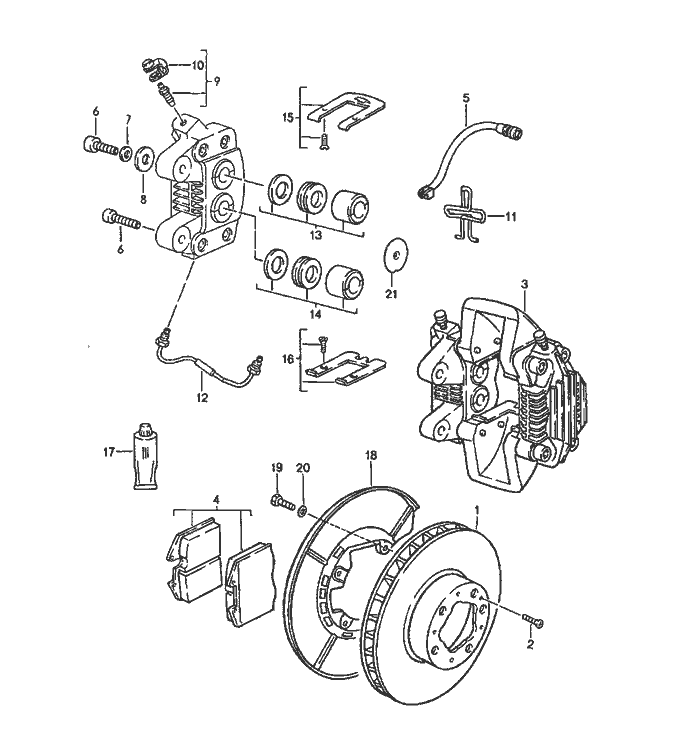

Pos__Part_Number__DescriptionRemarkQty.Model
  disc brake    TURBO
  rear axle
  see technical information
  GR.4, NR.1/89
  GR.4, NR.1/93
1 951 352 041 01brake disc  -86 2
1 951 352 041 02brake disc  872
2 N 033 167 1countersunk-head Schraube   2
  M 6 X 12
3 951 352 421 00fixed calliper Left 1
(3) 951 352 422 00fixed calliper Right 1
4 964 351 939 03brake pad repair set   1
  without asbestos
  use also:
  POS.(21)
4 965 352 939 04brake pad repair set   1 M 758
  without asbestos
  use also:
  POS.(21)
5 944 612 211 01warning contact  -86 2
(5) 944 612 365 01warning contact  872
  use also:
-928 612 361 00cable holder  872
6 N 040 108 1hexagon-head bolt   4
  M 12 X 1,5 X 40
7 N 012 232 1spring washer   4
  B 12
8 999 025 131 01spacer   4
9 930 351 919 00ventilation valve   4
10 930 351 927 00dust boot   4
11 951 352 950 00expanding spring   2
12 951 352 971 00connecting line   2
13 951 352 919 00gasket set   2
  $ 30

Pos__Part_Number__DescriptionRemarkQty.Model
14 951 352 919 01repair kit $ 28  2
15 993 352 959 01repair kit spring plate  2
16 993 352 959 00repair kit spring plate  2
17 000 043 020 00optimoly 1 100-gramme tube  X
17 000 043 117 00brake cylinder paste 1 50-g tube  X
18 964 352 801 00protective plate  2
19 999 072 005 09hexagon-head bolt M 6 X 12  8
20 N 012 226 5spring washer  8
21 928 352 096 10damping plate for piston $ 30  4
21 928 352 096 11damping plate for piston $ 28  4
