Porsche 944 Bremse Master Zylinder Teile

Bremse Master Zylinder

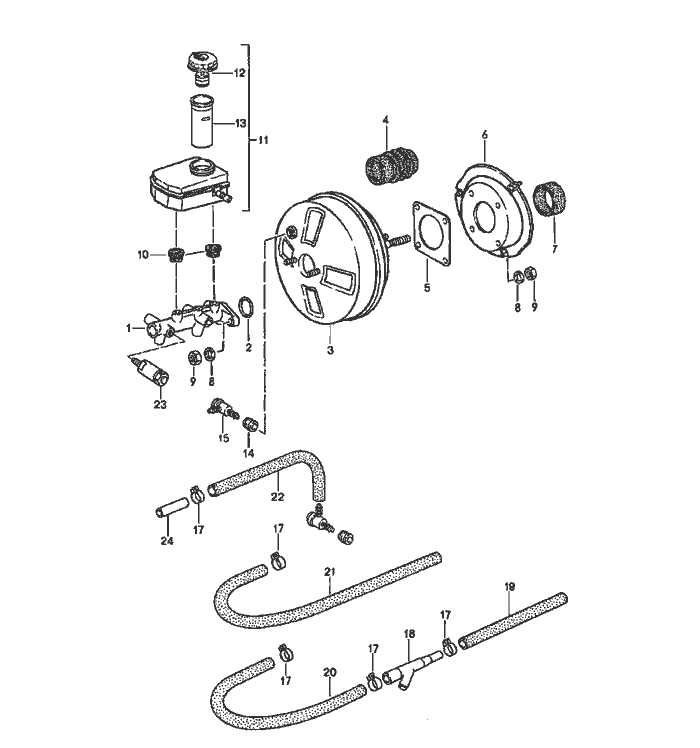

Pos__Part_Number__DescriptionRemarkQty.Model
  brake master cylinder
  brake booster
  expansion tank
1 944 355 011 00brake master cylinder Left Hand Drive-86 1 944
  -girling
1 944 355 011 01brake master cylinder  -86 1 944, TURBO
  -ate
1 944 355 011 10brake master cylinder Left Hand Drive871 944,944S
  -girling
1 951 355 011 01brake master cylinder  871 944,944S
  -ate -   TURBO
  brake light switch
  see group
  9/06/00
2 251 611 243sealing ring   1
3 944 355 023 00brake booster Left Hand Drive-86 1 944
  -girling
3 944 355 023 10brake booster Left Hand Drive871 944,944S
  -girling
3 944 355 023 11brake booster   1 944,944S,
  -ate -   TURBO
4 944 355 323 00bellows   1
5 477 611 951gasket   1
6 951 355 021 01intermediate piece   1
7 477 611 969 Dgasket   1
8 900 025 007 02washer   9
9 900 076 025 02hexagon nut   9
  M 8
10 911 355 922 00sealing plug   2
11 A 951 355 303 02expansion tank   1
11 951 355 303 02expansion tank   1
12 951 355 351 00lid   1
  with float

Pos__Part_Number__DescriptionRemarkQty.Model
13 951 355 385 00restrictor bush  1
14 911 355 921 00rubber seal  1
15 477 611 933 Acheck valve  1
15 191 611 933 Fcheck valve  1 TURBO
17 999 512 346 00hose clamp  3
18 067 133 753 Aventuri tube  1
-999 239 011 40hose  *
  12 X 19
19 -140 MM  1 944/944S
(19) 951 110 211 01vacuum hose  1 TURBO
20 944 110 219 00moulded hose  1 944
20 944 110 219 01moulded hose  1 944 AUT.
(20) 944 110 231 00moulded hose  1 944 S
(20) 951 110 213 00moulded hose  1 TURBO
21 944 110 219 00moulded hose  1 944
(21) 944 110 231 01moulded hose  1 944 S
(21) 951 110 223 01moulded hose  1 TURBO
-321 611 813t-socket  1 TURBO
-N 024 125 2hose clamp  2 TURBO
23 951 355 305 01brake pressure regulator  1 TURBO
23 928 355 305 02brake pressure regulator  1 944S
24 999 137 029 40hose connection  1 TURBO
-951 355 023 02heat shield  1 TURBO
-999 072 005 09hexagon-head bolt  3 TURBO
  M 6 X 12
-900 076 010 02hexagon nut  3 TURBO
  M 6
-N 011 547 1washer  6 TURBO
  A 6,5
