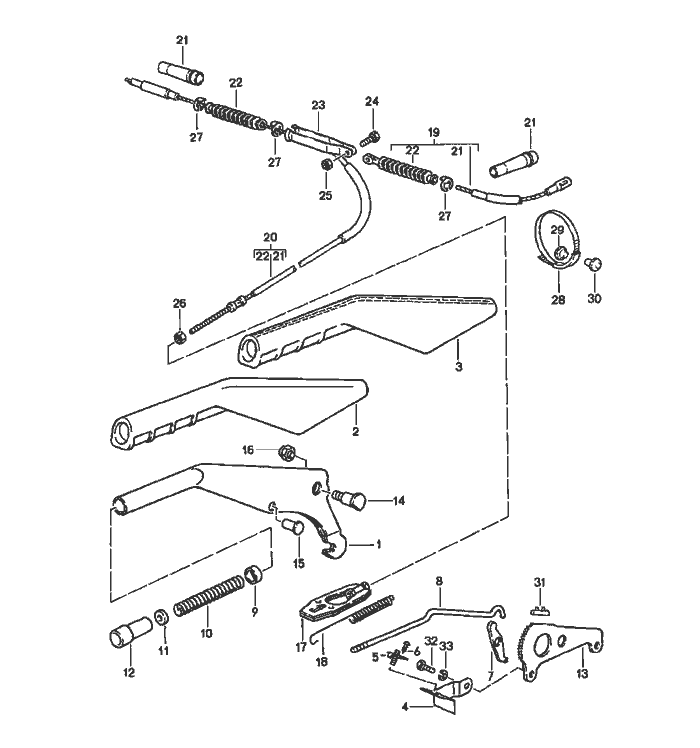

Porsche 944 Parking-brake Lever Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		parking-brake lever
1	928 424 253 14	parking-brake lever			1
2	944 424 259 01	cover			1
	1AJ	black
	4RB	brown
	7LD	burgundy
3	944 424 049 00	parking-brake lever			1	TURBO
		leather
	1AJ	black
4	944 424 535 00	support	Left Hand Drive		1
5	968 613 601 00	contact switch			1
6	N 013 957 5	tapping Schraube			1
		B 3,5 X 9,5
7	928 424 508 00	pawl			1
8	928 424 255 12	push rod			1
9	914 424 258 00	guide sleeve			1
10	901 424 543 00	compression spring			1
11	901 424 593 01	rubber ring			1
12	928 424 523 12	push button			1
13	928 424 541 14	locking segment			1
14	928 424 527 00	bearing pin			2
15	900 120 040 02	rivet			1
16	900 084 004 02	hexagon nut			1
17	928 424 033 00	turnbuckle			1
18	944 424 537 00	return spring			1
19	951 424 071 02	parking-brake cable			1
		short
20	951 424 072 02	parking-brake cable			1
		long

Pos	__Part_Number__	Description	Remark	Qty.	Model
21	477 609 723	guide tube		2
22	477 609 715	sealing sleeve		2
23	477 711 965	compensating bow		1
24	N 010 217 4	hexagon-head bolt M 6 X 20		1
25	900 910 012 02	lock nut M 6		1
26	900 076 010 02	hexagon nut M 6		1
27	N 012 328 1	lock 8		3
28	477 711 979	retaining strap		2
29	N 013 530 3	rivet		2
30	N 013 510 1	compression rivet		2
31	901 424 509 01	stop		1
32	N 010 239 11	hexagon-head bolt M 8 X 8		1
33	900 027 015 02	lock ring B 8		1
