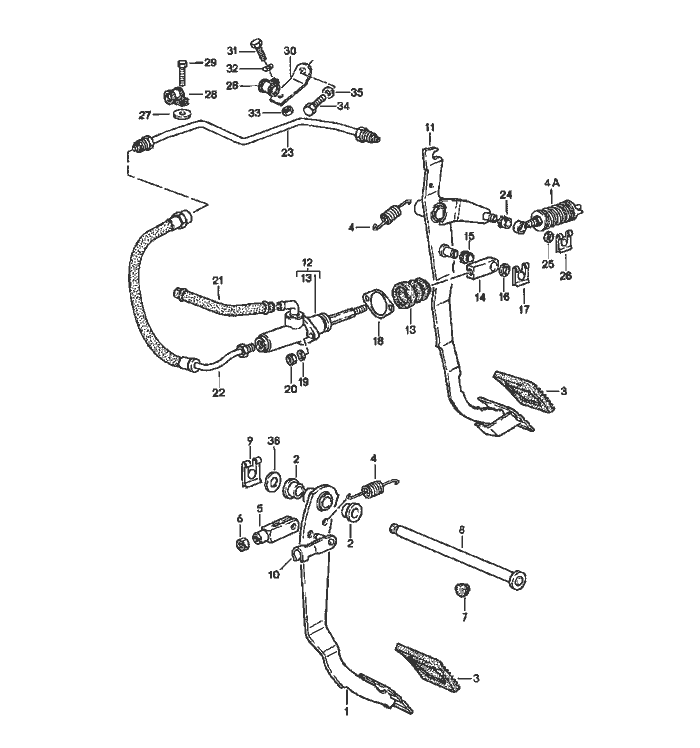

Porsche 944 Bremse Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		brake
		clutch
		pedals
		left-hand drive
1	944 423 051 00	brake pedal	-86	1
1	944 423 051 03	brake pedal	87	1
(1)	944 423 051 04	brake pedal		1	AUT.
2	443 721 153 A	bearing sleeve		2
(2)	999 201 021 00	needle sleeve	86	2	TURBO
			88		944S
3	321 721 173	pedal cap		2
(3)	827 723 173	cap		1	AUT.
4	321 721 191	return spring		2
4A	477 721 353 A	clutch power spring		1
4A	951 423 053 02	clutch power spring		1	TURBO
5	803 721 213	clevis	-86	1
5	999 166 061 30	clevis	87	1
6	N 011 010 6	hexagon nut		1
		M 10
7	999 703 183 40	buffer		1
8	843 721 309	bolt		1
		12 X 185 X 180
(8)	N 023 151 2	bolt		1	AUT.
		12 X 144 X 139
9	N 012 653 1	lock		1
10	N 023 476 1	bolt		1
		8 X 32
11	944 423 937 01	clutch pedal		1
11	951 423 037 00	clutch pedal		1	TURBO
12	477 721 171	clutch master cylinder		1
13	928 423 908 00	bellows		1

Pos	__Part_Number__	Description	Qty.	Model
14	928 423 517 00	clevis	1
15	999 924 002 40	plain bearing	1
16	900 025 008 09	washer	1
		A 10,5
17	999 166 034 02	sl-lock	1
18	928 423 191 00	gasket	1
19	900 027 015 02	lock ring	2
		B 8
20	900 076 025 02	hexagon nut	3
		M 8
21	999 181 021 50	hose	*
		12,5 X 7,5
		220 MM	1
22	951 423 189 01	clutch hose	1	944/TURBO
22	477 721 189 A	clutch hose	1	944S
23	951 423 091 11	clutch pipeline	1	944/TURBO
23	944 423 091 00	clutch pipeline	1	944S
24	999 924 001 40	bush	1
25	N 011 525 13	washer	1
		A 8,4
26	N 900 470 01	lock washer	1
27	N 900 067 01	washer	1
		6,4
28	N 020 680 1	clamp	1
29	N 010 264 4	hexagon-head bolt	1
		M 6 X 20
30	944 423 193 01	support	1
31	N 010 207 6	hexagon-head bolt	1
		M 5 X 12
32	N 012 225 2	spring washer	1
		B 5

Pos	__Part_Number__	Description	Qty.
33	N 011 005 14	hexagon nut	1
		M 5
34	N 010 239 11	hexagon-head bolt	1
		M 8 X 18
35	900 025 007 02	washer	1
36	311 955 255	washer	1
