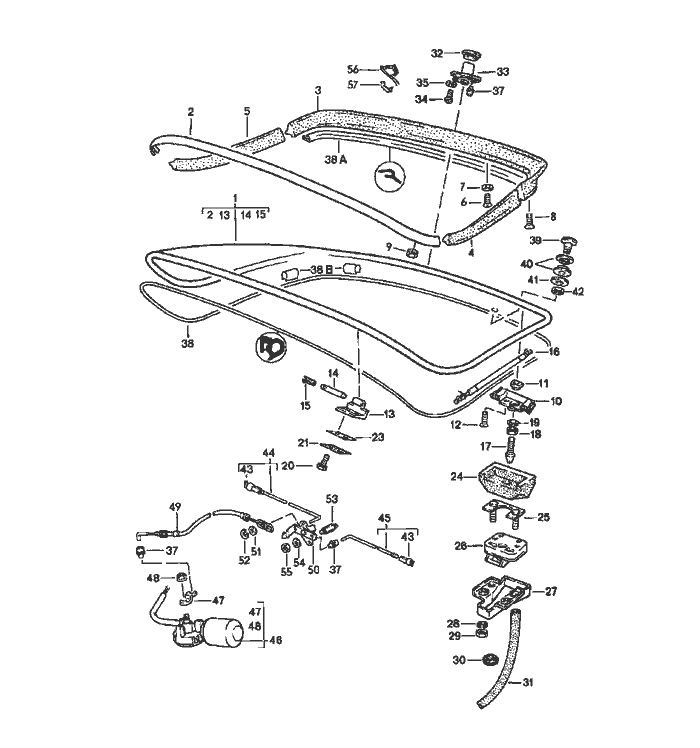

Porsche 944 Hinter Lid Hinter Spoiler Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		rear lid rear spoiler
1	477 827 027 J	rear lid with moulding and rear spoiler F >>94FN4 50103			1
1	944 512 929 05	rear lid with moulding without rear spoiler -MOD.86 and M425			1
		see group 9/04/05 POS.9 mounting plate MOD.87-order also:
		rear lid together with wiper motor
		see group 9/04/05
2	477 853 313 A	trim frame			1
3	937 512 555 00	rear spoiler			1
4	937 512 557 00	rear spoiler	Left		1
5	937 512 558 00	rear spoiler	Right		1
6	N 033 183 1	countersunk-head Schraube M 5 X 20			7
7	477 827 453 A	washer			7
8	N 033 185 1	countersunk-head Schraube M 4 X 16			4
9	N 021 255 1	slotted nut M 4			12
10	477 827 033 A	housing F >>94FN4 50103	Left		1

Pos	__Part_Number__	Description	Remark	Qty.	Model
10	944 512 033 01	housing	Left		1
		F 94FN4 50104>>
(10)	477 827 034 A	housing	Right		1
		F >>94FN4 50103
(10)	944 512 034 01	housing	Right		1
		F 94FN4 50104>>
11	477 827 035	rubber mounting			2
12	999 219 011 07	countersunk-head Schraube			4
		M 6 X 16,
13	477 827 305 B	hinge half			2
14	944 512 311 00	hinge pin			2
15	477 827 441	bush			2
(16)	944 512 348 00	gas-pressure spring	Right		1
16	944 512 349 00	gas-pressure spring	Left		1
17	477 827 527	lock pin			2
		F >>94FN4 50103
17	944 538 547 00	lock pin			2
		F 94FN4 50104>>
18	N 011 008 8	hexagon nut			2
		M 8
19	900 027 015 02	lock ring			2
		B 8
20	N 014 770 3	pan-head Schraube			4
		M 8 X 12
21	928 512 417 03	plate			2
23	944 512 413 00	gasket			2
24	477 827 365 D	gasket	Left		1
		F >>94FN4 50103
24	944 512 365 01	gasket	Left		1
		F 94FN4 50104>>
(24)	477 827 366 D	gasket	Right		1
		F >>94FN4 50103

Pos	__Part_Number__	Description	Remark	Qty.	Model
(24)	944 512 366 01	gasket	Right		1
		F 94FN4 50104>>
25	951 512 447 00	reinforcement plate			2
26	477 827 505 A	rear lid lock	Left		1
		F >>94FN4 50103
26	944 538 955 01	rear lid lock	Left		1
		F 94HN4 60001>>94JN4 65546				944S
		F 94FN4 50104>>94JN4 73458				944
		F 95GN1 50001>>95JN1 51355				TURBO(USA)
		F 95GN1 50001>>95JN1 60105				TURBO(CDN)
(26)	944 538 055 01	rear lid lock	Left		1
		F 94JN4 65547>>				944S
		F 94JN4 73459>>				944
		F 95JN1 51356>>				TURBO(USA)
		F 95JN1 60106>>				TURBO(CDN)
(26)	477 827 506 A	rear lid lock	Right		1
		F >>94FN4 50103
(26)	944 538 956 01	rear lid lock	Right		1
		F 94HN4 60001>>94JN4 65546				944S
		F 94FN4 50104>>94JN4 73458				944
		F 95GN1 50001>>95JN1 51355				TURBO(USA)
		F 95GN1 50001>>95JN1 60105				TURBO(CDN)
(26)	944 538 056 01	rear lid lock	Right		1
		F 94JN4 65547>>				944S
		F 94JN4 73459>>				944
		F 95JN1 51356>>				TURBO(USA)
		F 95JN1 60106>>				TURBO(CDN)
27	477 827 541	water drip pan			2
28	N 012 006 4	lock ring			4
		B 6
29	900 076 010 02	hexagon nut			4
		M 6
30	111 971 911 A	rubber sleeve			2
31	477 827 547	hose			2
		400 MM
32	477 827 529 A	sealing ring			1
33	944 538 911 00	lock cylinder		-87	1
		w/o stipulated lock number
		with 2 secondary keys

Pos	__Part_Number__	Description	Remark	Qty.	Model
(33)	944 538 911 01	lock cylinder		88	1
		w/o stipulated lock number
		with 2 secondary keys
(33)	477 827 573 B	lock cylinder		-87	1
		with stipulated lock number
(33)	944 538 073 00	lock cylinder		88	1
		with stipulated lock number
		state lock number
34	N 014 139 5	oval-head Schraube			2
		M 6 X 12
35	N 012 007 2	lock ring			2
		A 6
37	993 531 563 00	linkage clip		-87	2
(37)	999 166 054 02	sl-lock		88	1
38	944 512 043 00	seal for rear lid			1
38A	944 512 463 00	additional gasket		-86	1
38A	944 512 463 00	additional gasket		87	1
39	477 845 333	Schraube plug			1
40	477 955 439	grommet			2
41	477 845 331	washer			1
42	N 011 118 14	hexagon nut			1
		M 8
43	N 015 704 1	ball socket		-87	1
(43)	999 168 025 00	ball socket		88	1
44	944 512 092 01	pull rod	Right		1
45	944 512 091 00	pull rod	Left		1
46	944 624 024 01	electric motor			1
		see technical information
		GR.5,NR.1/93
		F >>94GN4 57874				944
		F >>95GN1 54211				TURBO

Pos	__Part_Number__	Description	Remark	Qty.	Model
(46)	944 624 024 01	electric motor see technical information GR.5,NR.1/93 F 94GN4 57875>> F 95GN1 54212>>	-87	1	944 TURBO
(46)	944 624 024 02	electric motor see technical information GR.5,NR.1/93	88	1
47	944 624 824 00	lever F >>94GN4 57874 F >>95GN1 54211		1	944 TURBO
(47)	944 624 824 01	lever F 94GN4 57875>> F 95GN1 54212>>	-87	1	944 TURBO
(47)	944 624 814 00	lever	88	1
48	999 084 045 02	lock nut		1
49	944 512 097 02	bowden cable F >>94JN4 72389 F >>94JN4 65448 F >>95JN1 51087 F >>95JN1 60086		1	944 944S TURBO(USA) TURBO(CDN)
(49)	944 512 097 03	bowden cable F 94JN4 72390>> F 94JN4 65449>> F 95JN1 51088>> F 95JN1 60087>>		1	944 944S TURBO(USA) TURBO(CDN)
50	944 512 095 00	lever		1
52	N 012 054 2	clamping washer		1
53	944 512 201 00	stud		2
54	N 011 524 7	washer B 6		2
55	900 076 010 02	hexagon nut M 6		2
56	944 624 030 00	microswitch F 94JN4 65547>> F 94JN4 73459>> F 95JN1 51356>> F 95JN1 60106>>		1	944S 944 TURBO(USA) TURBO(CDN)

Pos	__Part_Number__	Description	Remark	Qty.	Model
57	999 591 910 00	clamp F 94JN4 65547>> F 94JN4 73459>> F 95JN1 51356>> F 95JN1 60106>>		1	944S 944 TURBO(USA) TURBO(CDN)
