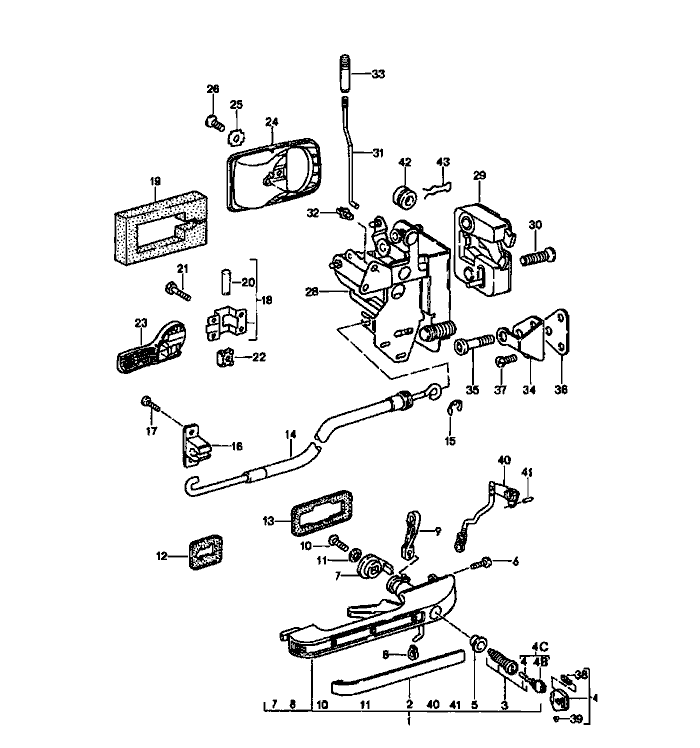

Porsche 944 Outer Door Handle Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		outer door handle
		door lock
1	944 538 905 00	outer door handle	Left	85	1
(1)	944 538 906 00	outer door handle	Right	85	1
(1)	944 538 905 01	outer door handle w/o stipulated lock number M341:	Left	86	1
		microswitch			1
		911.613.133.00 order also:
(1)	944 538 905 02	outer door handle with stipulated lock number M341:	Left	86	1
		microswitch 911.613.133.00			1
		order also:
(1)	944 538 906 01	outer door handle w/o stipulated lock number M341:	Right	86	1
		microswitch 911.613.133.00			1
		order also:
(1)	944 538 906 02	outer door handle with stipulated lock number M341: microswitch	Right	86	1 1
		911.613.133.00
		order also:
2	823 837 239	cover		85	2
3	944 538 903 00	lock cylinder w/o stipulated lock number with 2 secondary keys		85	2
(3)	944 538 903 01	lock cylinder with stipulated lock number state lock number		85	2
		with 2 secondary keys
		grease for lock cylinder
		see group 0/05/00
4	944 538 331 00	blank key			2
4A	944 538 041 00	key lamp			1

Pos	__Part_Number__	Description	Remark	Qty.	Model
4B	944 538 431 00	key cap			1
4C	944 538 933 00	key			1
		with stipulated lock number
		state lock number
		Information available
5	111 837 227 B	sealing ring		85	2
6	803 837 951	self-lock. fillister Schraube			2
7	477 837 497	driver		85	2
8	999 168 004 40	ball socket		85	2
9	477 837 505 A	connecting piece	Left		1
(9)	477 837 506 A	connecting piece	Right		1
10	N 033 165 1	countersunk-head Schraube		85	2
		AM 4 X 8
11	N 012 116 1	serrated lock washer		85	2
		V 4,3
12	867 837 209	desk pad	Vorder		2
13	171 837 211 A	desk pad	Hinter		2
14	477 837 017 A	bowden cable			2
15	900 116 002 02	lock washer			2
		3,2
16	477 837 115 A	support			2
17	999 217 029 02	hexagon-head bolt			4
		M 6 X 10
		self-locking
18	944 537 029 00	inner door release	Left		1
(18)	944 537 030 00	inner door release	Right		1
19	477 831 304 A	seal			2
20	N 013 666 1	rivet			2
		B 4 X 32
21	999 217 029 02	hexagon-head bolt			8
22	477 837 521	captive nut			8

Pos	__Part_Number__	Description	Remark	Qty.
23	944 537 225 00	handle inner door release	Left	1
(23)	944 537 226 00	handle inner door release	Right	1
	01C	black	85
	4RB	brown	85
	8CJ	light grey	85
	9MM	burgundy	85
	3DL	black	86
	5TL	brown	86
	1FL	light grey	86
	4LL	burgundy	86
24	944 537 229 00	rosette		2
	8UC	brown	85
	7DC	light grey	85
	3MC	burgundy	85
	3DL	black
	5TL	brown	86
	1FL	light grey	86
	4LL	burgundy	86
26	N 014 216 1	countersunk-head Schraube AM 5 X 10		2
28	928 537 907 03	lock inner part	/LL/L85	1
28	928 537 053 07	door lock inner part	/LL/L86-	1
(28)	928 537 908 04	lock inner part	/LL/R85	1
(28)	928 537 054 08	door lock inner part	/LL/R86-	1
