Porsche 944 Dashboard Trim Teile

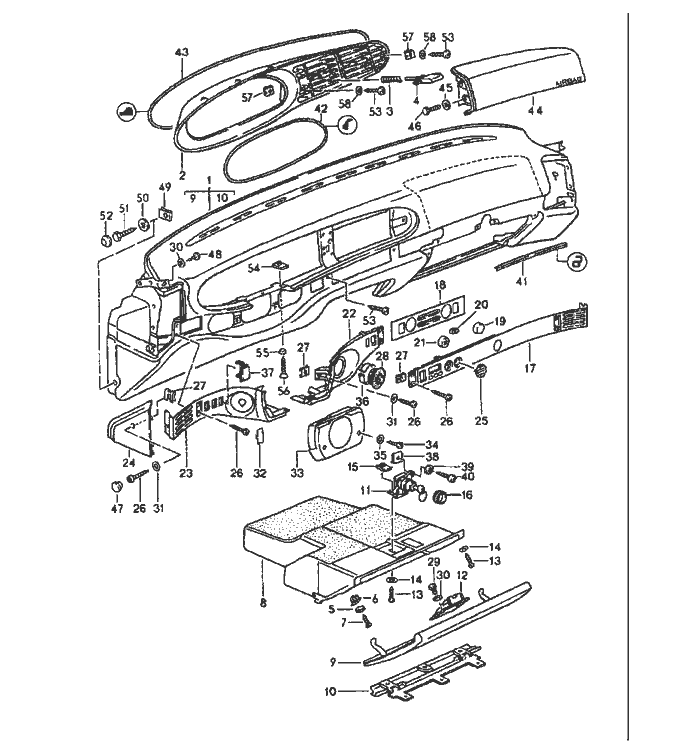

Dashboard Trim


Pos__Part_Number__DescriptionRemarkQty.Model
  dashboard trim
1 944 552 085 00dashboard trim Left Hand Drive 1
 NW8black
 NW9brown
 NX1black/light grey
 NX2burgundy  -87
 UR3burgundy  88-
(1) 944 552 085 20dashboard trim  871 M 562/563
 NW8black
 NW9brown
 NX1black/light grey
 NX2burgundy  -87
 UR3burgundy  88
1 944 552 085 50dashboard trim leather Left Hand Drive86861 M 981
 QE6black
 RB1brown
 QE4black/light grey
 NY4burgundy  -87
 US7burgundy  88-
 RB2can-can red/black
 RB3black/pearl white
 RB4black/champagne
 RB5burgundy/pearl white
 RB6cadbury brown/champagne
 RB8cadbury brown/pearl white
(1) 944 552 085 51dashboard trim leather  87861 M 981/562

Pos__Part_Number__DescriptionRemarkQty.Model
 QE6black
 RB1brown
 QE4black/light grey
 NY4burgundy  -87
 US7burgundy  88-
 RB2can-can red/black
 RB3black/pearl white
 RB4black/champagne
 RB5burgundy/pearl white
 RB6cadbury brown/champagne
 RB8cadbury brown/pearl white
2 944 552 023 00dashboard trim Left Hand Drive 1
3 944 572 421 00spring   1
4 944 572 419 00knob   1
5 944 552 259 00plug   2
6 999 591 679 40special nut   2
7 N 902 662 01combination tapping Schraube B 3,5 X 16   2
(8) 944 552 049 01glove compartment Left Hand Drive 1 M 573
(8) 944 552 049 20glove compartment  871 M 562
(8) 944 552 049 21glove compartment  871 M 562/573
9 944 552 123 00glove compartment cover Left Hand Drive 1
 05Tblack
 4RBbrown
 4DYlight grey
 5LXburgundy
(9) 944 552 123 20glove compartment cover  871 M 562

Pos__Part_Number__DescriptionRemarkQty.Model
 05Tblack
 4RBbrown
 4DYlight grey
 5LXburgundy
9 944 552 123 50glove compartment cover leather Left Hand Drive86861 M 981
 1AJblack  86
 4RBbrown  86
 1FWlight grey  86
 7LDburgundy  86
 80Scan-can-red  86
 8YDpearl white  86
 1VDchampagne  86-
(9) 944 552 123 51glove compartment cover leather  87861 M 981/562
 1AJblack  86
 4RBbrown  86
 1FWlight grey  86
 7LDburgundy  86
 80Scan-can-red  86
 8YDpearl white  86
 1VDchampagne  86
10 928 552 055 03hinge   1
11 944 538 951 00push-button lock w/o stipulated lock number  -86 1
(11) 944 538 951 02twist lock w/o stipulated lock number  871
(11) 944 538 951 01push-button lock with stipulated lock number  -86 1

Pos__Part_Number__DescriptionRemarkQty.Model
(11) 944 538 951 03twist lock 871
  with stipulated lock number
12 A 944 538 061 21closing element -86 1
(12) 944 538 061 21closing element  1
  twist lock
13 N 013 958 14tapping Schraube  1
  3,5 X 13
14 N 011 663 4washer  1
  B 3,7
15 999 591 349 02speed nut  1
  B 3,5
16 944 538 529 00sealing ring  1
  glove compartment lock
(16) 944 552 585 00retaining ring 871
17 944 552 436 00strip for switches Left Hand Drive \/ Right Side1
22 944 552 431 00strip for switches Left Hand Drive1
23 944 552 429 00strip for switches Left Hand Drive \/ Left Side1
24 944 552 083 00trim cover Left1
 1DBblack
(24) 944 552 084 00trim cover Right1
 1DBblack
25 944 552 451 00rosette  1
  interior sensor
26 N 013 959 3tapping Schraube  4
  3,5 X 16
27 N 015 438 1speed nut  2
  B 4,8 X 16
28 944 552 447 00cover  1
  ignition starter lock
29 N 014 128 13oval-head Schraube  2
  M 5 X 8
30 N 011 665 10washer  2
  B 5,3

Pos__Part_Number__DescriptionRemarkQty.Model
31 N 011 554 6washer   1
  B 3,7 DIN 433
32 944 552 449 00cover Left 1
(32) 944 552 450 00cover Right 1
  strip for switches
33 944 552 073 00lining   1
 1DBblack
(33) 944 552 073 01lining   1 M 454
 1DBblack
(33) 944 552 273 20lining  871 M 562
 1DBblack
(33) 944 552 373 20boot  871 M 562
 01Cblack
(33) A 944 552 373 21boot  871 M 562/454
 01Cblack
34 999 073 047 02tapping Schraube   2
  B 3,5 X 9,5
35 N 011 554 6washer   2
  3,7
36 944 552 452 00clip   1
37 944 613 257 00cover Left Hand Drive 1
38 999 591 763 02speed nut   3
  B 4,8
  push-button lock
(38) 999 591 777 02speed nut   3 M 562
  B 4,8
  twist lock
39 N 011 556 2washer   3
  5,3
40 N 013 975 4tapping Schraube   3
  B 4,8 X 19
  push-button lock

Pos__Part_Number__DescriptionRemarkQty.Model
(40) 900 143 046 02tapping Schraube B 4,8 X 16 twist lock  3 M 562
41 944 552 035 00gasket  1
42 999 911 342 40piping dashboard trim inner  1
43 999 911 320 40piping dashboard trim outer  1
44 944 552 385 00lid  1 M 562
 05Tblack
 1KXmarine blue -90
 7MWburgundy -90
45 900 151 006 09washer B 6,4  4 M 562
46 999 217 020 02hexagon-head bolt M 6 X 10 micro-self-locking  4 M 562
47 944 552 767 00cap  2
 01Cblack
48 N 013 968 7tapping Schraube B 4,2 X 13  2
49 N 015 449 1speed nut B 6,3  2
50 999 025 167 07washer B 7,4  2
51 900 187 123 07tapping Schraube B 6,3 X 22  2
52 928 555 383 02cap  2
 70Bblack
53 N 013 959 3tapping Schraube 3,5 X 16  10

Pos__Part_Number__DescriptionRemarkQty.Model
54 999 591 733 07speed nut 3,5  2
55 N 100 401 02cone washer B 4,2  2
56 900 145 070 07tapping Schraube 3,5 X 19  2
57 N 015 438 1speed nut 3,5  3
58 N 011 554 6washer 3,7  3
