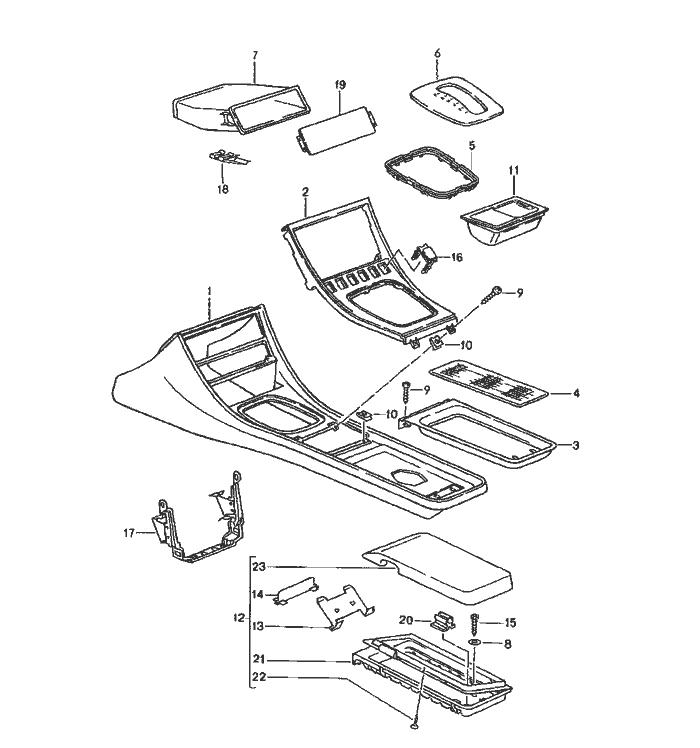

Porsche 944 Cassette Box Centre Console Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		cassette box centre console
1	944 552 051 00	centre console			1
	05T	black
	4RB	brown
	4DY	light grey
	5LX	burgundy
(1)	944 552 051 50	centre console leather		86	1	M 981
	1AJ	black
	4RB	brown
	1FW	light grey
	7LD	burgundy
	80S	can-can-red
	8YD	pearl white
	1VD	champagne
2	944 552 117 00	trim cover			1
(2)	944 552 117 01	covering frame	Left Hand Drive		1	M 249
3	944 552 155 00	tray centre console			1
4	944 552 161 00	insert			1
5	944 552 257 00	frame			1
(5)	944 552 517 00	frame			1	M 249
6	944 552 527 00	cover			1	M 249
7	944 552 157 00	shelf			1
	1DB	black
8	900 151 028 07	washer B 4,3			2

Pos	__Part_Number__	Description	Remark	Qty.	Model
9	N 013 958 14	tapping Schraube 3,5 X 13			6
10	999 591 349 02	speed nut			4
11	944 552 171 00	ashtray			1
12	A 944 552 063 00	cassette box	Left Hand Drive		1
	05T	black
	4RB	brown
	4DY	light grey
	5LX	burgundy
12	A 944 552 063 50	cassette box leather	Left Hand Drive	86	1
	1AJ	black
	4RB	brown
	1FW	light grey
	7LD	burgundy
	80S	can-can-red		86
	8YD	pearl white		86
	1VD	champagne		86
	5NW	wild buffalo		86
13	928 555 731 02	cassette rack			1
	01C	satin black
14	928 555 741 02	partition panel			1
15	N 902 663 01	oval-head sheetmetal Schraube 4,2 X 25			2
16	944 613 256 00	cover fader			1
(16)	944 613 259 01	cover switch			5
17	944 552 067 01	support		-86	1

Pos	__Part_Number__	Description	Remark	Qty.	Model
17	944 552 067 02	support		87	1
18	944 552 557 00	spring clamp			2
19	A 944 552 061 00	cover			1
19	A 944 552 261 01	cover			1
	1DB	black
19	944 552 261 02	cover			1
	1DB	black
21	944 552 553 01	frame cassette box	Left Hand Drive		1
	01C	black
22	900 144 017 07	tapping Schraube 2,9 X 13			8
23	944 552 165 00	lid leatherette	Left Hand Drive		1
	05T	black
	4RB	brown
	4DY	light grey
	5LX	burgundy
23	944 552 165 50	lid leather	Left Hand Drive		1
	1AJ	black
	4RB	brown
	1FW	light grey
	7LD	burgundy
	80S	can-can-red
	8YD	pearl white
	1VD	champagne
	5NW	wild buffalo
