Porsche 944 Starter Teile

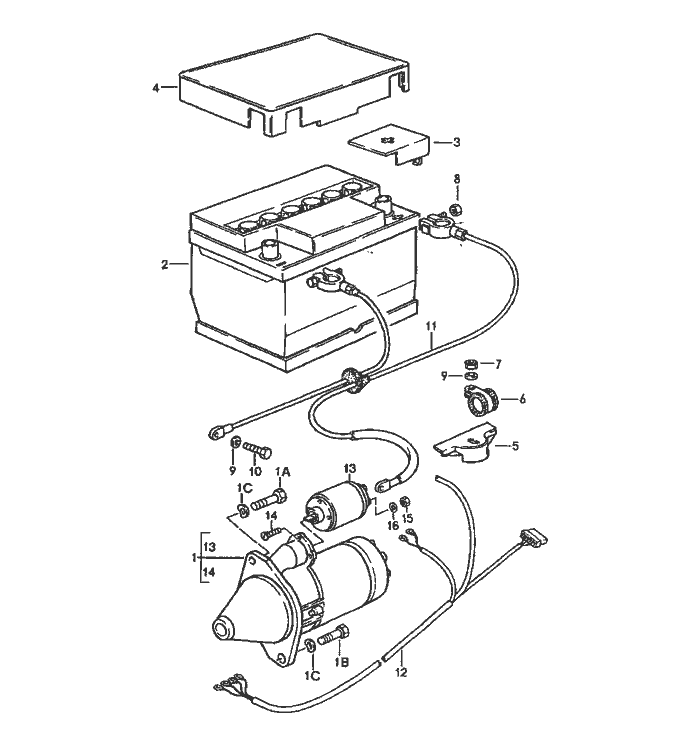

Pos	__Part_Number__	Description	Remark	Qty.	Model
		starter
		battery
		wiring harnesses
1	951 604 101 00	starter			1
1A	N 010 491 1	hexagon-head bolt			1
		M 12 X 50
1B	N 040 253 1	hexagon-head bolt			1
		M 12 X 35
1C	900 028 014 02	spring washer			2
		B 12
2	944 611 105 00	battery			1
		63 AH
4	477 915 411 A	battery cover			1
		for
		battery
		63 AH
5	914 611 233 10	tension terminal	Left Hand Drive		1
6	N 020 607 1	clamp	Left Hand Drive		1
		B 20 X 20 GI
7	900 076 010 02	hexagon nut			1
8	477 915 489	hexagon nut			1
		M 8
9	N 012 008 5	washer			1
		B 8
10	N 010 239 11	hexagon-head bolt			1
		M 8 X 18
11	944 612 027 00	wiring harness	Left Hand Drive		1
		battery
		starter
12	944 607 029 00	wiring harness			1	944/TURBO
		starter
		generator
12	944 607 029 02	wiring harness			1	944S
		starter
		generator

Pos	__Part_Number__	Description	Remark	Qty.	Model
12	944 607 029 01	wiring harness starter generator			1	944/TURBO M 573
12	944 607 029 03	wiring harness starter generator			1	944S,M 573
-	951 604 043 00	heat shield	Left		1	TURBO
-	951 604 454 01	heat shield	Right		1	TURBO
-	999 659 006 50	protection cap			1
13	951 604 902 00	solenoid engaging switch			1
14	951 604 901 00	countersunk-head Schraube			1
15	N 011 005 14	hexagon nut M 5			1
16	900 025 003 02	washer A 5,3			1
