Porsche 944 Windscreen Washer System Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model

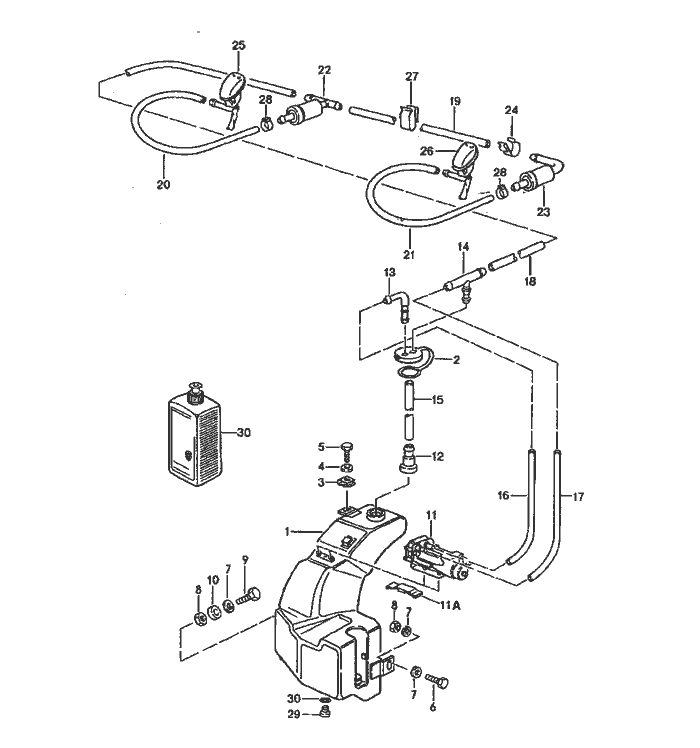

		windscreen washer system
1	477 955 451 D	water reservoir	-87	1
(1)	944 628 060 00	water reservoir	88	1
(1)	944 628 061 00	water reservoir	88	1	M 288
2	477 955 455	lid	-87	1
(2)	911 628 077 01	lid	88	1
3	477 955 461	speed nut		1
		6,3 X 22
4	900 151 029 02	washer		1
		6,4
5	N 013 891 1	tapping Schraube		1
		B 6,3 X 19
6	N 010 218 6	hexagon-head bolt		1
		M 6 X 25
7	N 011 612 3	washer		4
		R 7
8	900 076 010 02	hexagon nut		2
		M 6
9	N 010 220 3	hexagon-head bolt		1
		M 6 X 30
10	052 109 135	spacer sleeve		1
11	823 955 651	pump	-87	1
11	928 628 172 01	pump	88	1
11A	477 955 743	clip		1
12	911 628 749 00	t-piece		1
13	477 955 456	connection piece		1
14	477 955 459	t-socket		1
-	999 181 722 40	hose		*
		4 X 1
15	-	500 MM		2
16	-	260 MM		1

Pos	__Part_Number__	Description	Remark	Model
17	-	280 MM		1
18	-	1680 MM		1
19	-	390 MM		1
20	-	250 MM 330 MM	/R /L	1 1
22	914 628 433 00	valve		1
23	477 955 481	valve		1
24	477 955 981	cable terminal		4
25	944 628 077 00	nozzle	Right	1
	01C	black heatable
26	928 628 077 00	nozzle	Left	1
	70B	black heatable
27	944 628 181 00	retaining clip		6
28	N 100 020 01	clamp		8
29	999 063 015 40	stopper		1
30	999 707 171 40	o-ring		1
