Porsche 944 Kopflight Washer System Teile

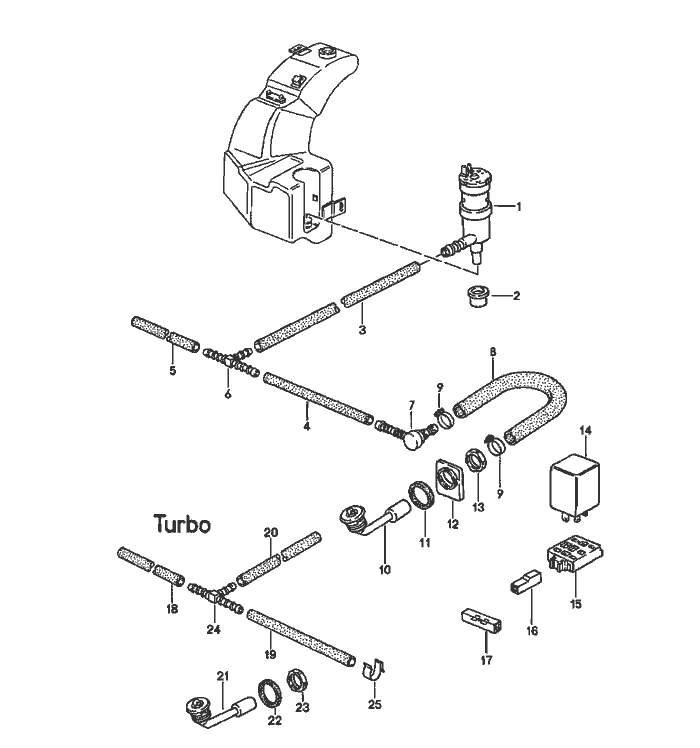

Kopflight Washer System


Pos__Part_Number__DescriptionRemarkQty.Model
  headlight washer system   M 288
1 191 955 681pump  1
2 431 955 465 Agasket  1
-N 020 126 1pipe  *
  12,5 X 1,25
3 -410 MM  1
4 -800 MM  1
5 -60 MM  1
6 113 955 975 Bt-piece  1
7 477 955 183pressure control valve  2
8 928 528 161 02hose  2
9 N 023 570 2hose clamp  4
10 928 528 071 02jet carrier  2
 03Cblack
(10) 477 955 177jet carrier  2 M 036/058
11 944 628 803 00rubber washer  2
12 944 628 801 00torsion protection  2
13 N 019 121 1nut  2
  MPG 11
14 928 618 111 00relay  1
15 135 937 501 Aterminal sleeve housing  1
16 825 971 990terminal sleeve housing  1
17 111 937 077 Eline distributor  1
-999 181 806 40hose  * TURBO
  10 X 3
  480 MM  1
  550 MM  1
  700 MM
21 911 628 071 01jet carrier  2 TURBO
 01Csatin black

Pos__Part_Number__DescriptionRemarkQty.Model
22 N 011 568 2washer  2 TURBO
23 N 019 121 1nut  2 TURBO
24 281 955 187valve  1 TURBO
25 999 651 159 02cable clamp  6 TURBO
26 N 023 570 2hose clamp  4 TURBO
