Porsche 944 Instrument Cluster Teile

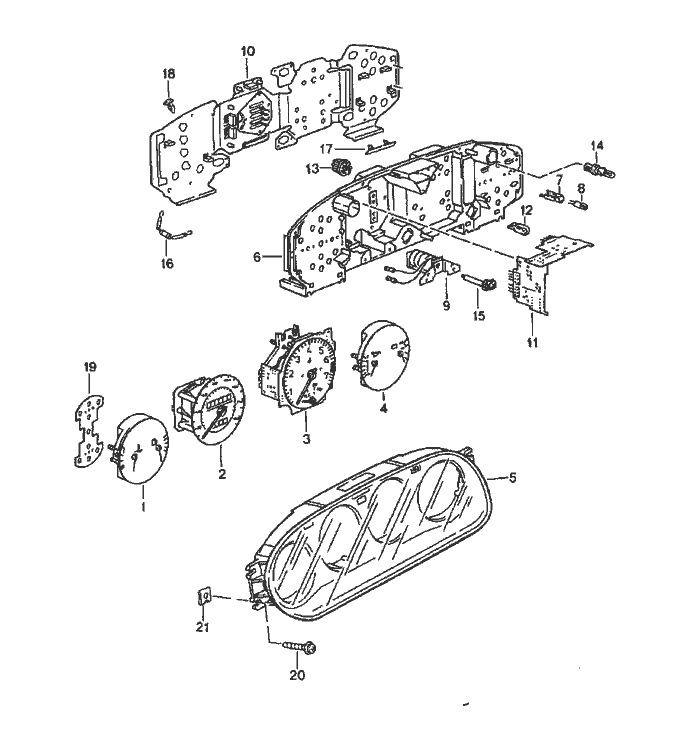

Instrument Cluster


Pos__Part_Number__DescriptionRemarkQty.Model
  instrument cluster -86
1 944 641 953 04instrument cluster  1
  left
  -temperat. -fuel gauge
  english
2 944 641 951 00speedometer  1 (CDN)
  270 KM/H
2 944 641 951 09speedometer  1 (USA)
  170 MPH + 270 KM/H
2 944 641 951 04speedometer  1 (CDN) AUT.
  270 KM/H
2 944 641 951 09speedometer  1 (USA) AUT.
  170 MPH + 270 KM/H
3 944 641 952 00tachometer  1
3 944 641 952 06tachometer  1 (USA)
3 944 641 952 12tachometer  1 AUT.
3 944 641 952 04tachometer  1 (USA) AUT.
3 944 641 952 01tachometer  1 TURBO
4 944 641 954 01instrument insert  1
  right
  -volt -oil
  english
5 944 641 941 01covering frame  1
6 928 641 968 01mounting plate  1
7 928 641 982 00bulb socket  6
8 928 641 983 00bulb  6
9 928 641 921 00solenoid coil  1
10 944 641 961 01printed circuit board  1
11 944 641 959 02printed circuit board  1
12 900 631 019 90glass-base bulb  4
  12 V -3 W
13 928 641 927 00bulb socket  4

Pos__Part_Number__DescriptionRemarkQty.Model
14 999 631 301 90bulb  4
15 928 641 960 00zero adjustment shaft  1
16 928 641 981 01resistor  1
17 928 641 985 00clip  3
18 928 641 984 00clip  4
19 928 641 986 00gasket  1
20 900 143 151 02combination tapping Schraube  4
  B 4,2 X 16
21 N 015 429 2speed nut  4
  B 4,2
