Porsche 944 Luft Cleaner System Teile

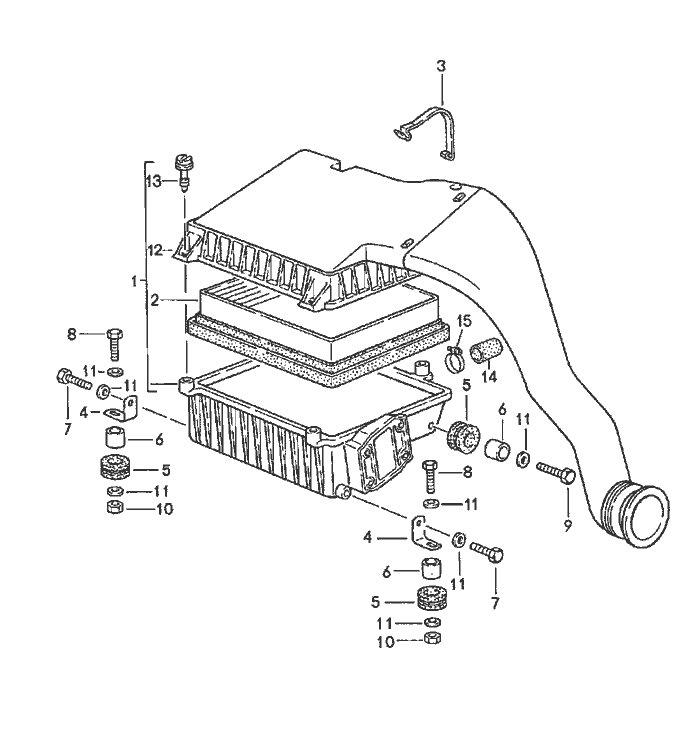

Luft Cleaner System


Pos__Part_Number__DescriptionRemarkQty.Model
  air cleaner system   M44.52
1 951 110 021 02air cleaner  1
2 951 110 121 01air cleaner cartridge  1
3 951 110 421 02clip  1
4 951 110 169 02support  2
5 951 110 173 00rubber sleeve  3
6 951 110 175 00sleeve  3
7 N 010 210 13hexagon-head bolt M 6 X 10  2
8 N 010 217 9hexagon-head bolt M 6 X 20  2
9 900 075 057 02hexagon-head bolt M 6 X 16  1
10 900 076 010 02hexagon nut M 6  2
11 N 011 524 7washer A 6,4  7
12 951 110 021 50air cleaner cover  1
13 944 110 225 01combination Schraube  X
14 944 106 103 00cap hose clamp  1 1
