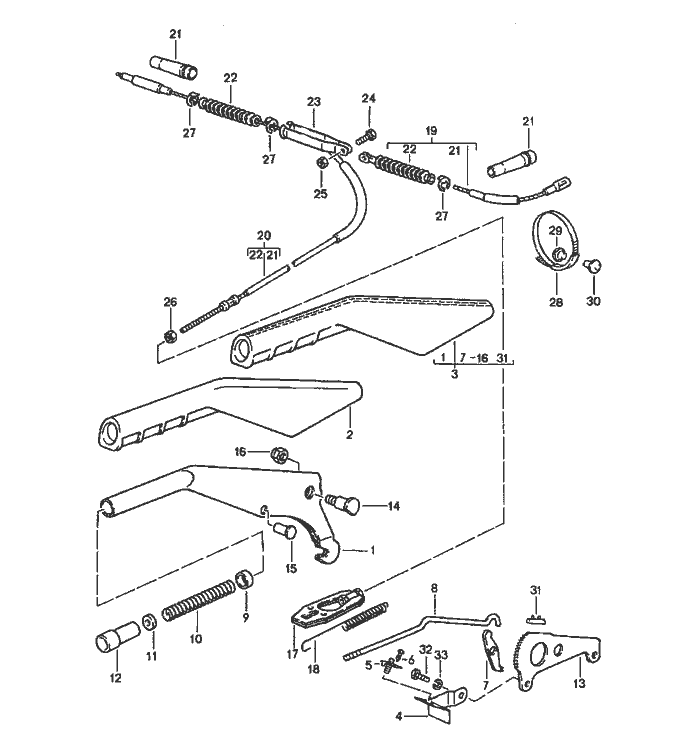

Porsche 944 Parking-brake Lever Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		parking-brake lever
1	928 424 253 14	parking-brake lever			1
2	944 424 259 01	cover		-90	1
	1AJ	black
	7LD	burgundy
	7VX	linen
	2JZ	marine blue
3	944 424 049 00	parking-brake lever			1
		leather
	1AJ	black
	2JZ	marine blue		-90
	9WW	cobalt blue		91
	7WH	classic grey		91
4	944 424 535 00	support	Left Hand Drive		1
5	968 613 601 00	contact switch			1
6	N 013 957 5	tapping Schraube			1
		B 3,5 X 9,5
7	928 424 508 00	pawl			1
8	928 424 255 12	push rod			1
9	914 424 258 00	guide sleeve			1
10	901 424 543 00	compression spring			1
11	901 424 593 01	rubber ring			1
12	928 424 523 12	push button			1
13	928 424 541 14	locking segment			1
14	928 424 527 00	bearing pin			2
15	900 120 040 02	rivet			1
16	900 084 004 02	hexagon nut			1
17	928 424 033 00	turnbuckle			1

Pos	__Part_Number__	Description	Remark	Qty.	Model
18	944 424 537 00	return spring		1
19	951 424 071 02	parking-brake cable		1
		short
20	951 424 072 02	parking-brake cable		1
		long
21	477 609 723	guide tube		2
22	477 609 715	sealing sleeve		2
23	477 711 965	compensating bow		1
24	N 010 217 9	hexagon-head bolt		1
		M 6 X 20
25	900 910 012 02	lock nut		1
		M 6
26	900 076 010 02	hexagon nut		1
		M 6
27	N 012 328 1	lock		3
		8
28	477 711 979	retaining strap		2
29	N 013 530 3	rivet		2
30	N 013 510 1	compression rivet		2
31	901 424 509 01	stop		1
32	N 010 239 11	hexagon-head bolt		1
		M 8 X 18
33	900 027 015 02	lock ring		1
		B 8
