Porsche 968 Kurbelgehäuse Teile

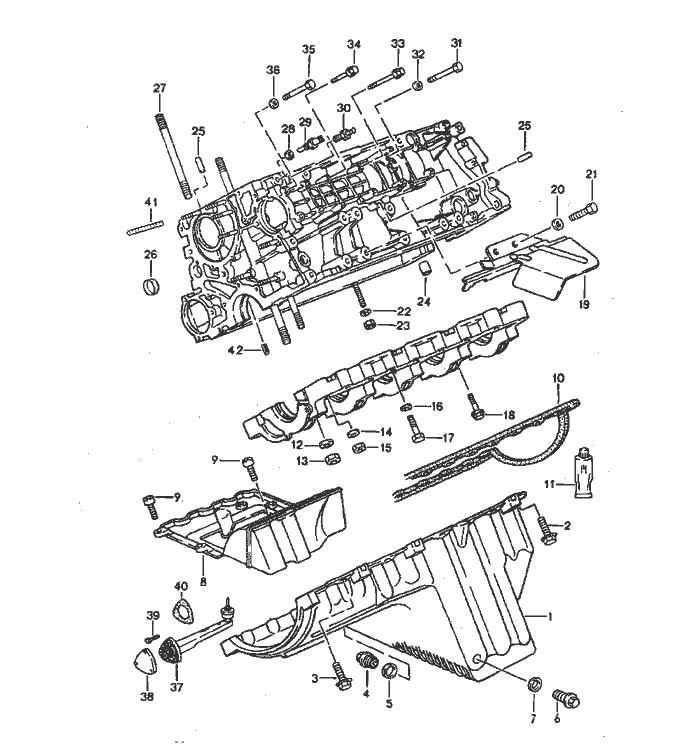

Kurbelgehäuse


Pos__Part_Number__DescriptionRemarkQty.Model
  crankcase   M44.43/44
  mounting parts
1 944 101 204 00oil pan  1
2 900 075 344 02hexagon-head bolt  4
  M 6 X 50 Z1
3 900 075 341 02combination Schraube  18
  M 6 X 25 Z1
4 944 107 197 01Schraube plug  1
5 900 123 118 30sealing ring  1
6 N 016 164 1Schraube plug  1
7 900 123 049 30sealing ring  1
8 944 107 389 03insert for oil sump  1
9 900 119 001 02pan-head Schraube  7
  M 5 X 12
10 944 101 205 02oil sump gasket  1
11 000 043 019 01sealing compound  X
  1 tube
  SILASTIK 730 RTV
(11) 000 043 010 00loctite  1
  574
  1 50-g tube
12 944 104 229 00washer  10
13 N 011 020 8hexagon nut  10
  M 12 X 1,5
14 928 101 303 00washer  6
15 N 011 010 13hexagon nut  7
  M 10
16 900 025 007 02washer  7
17 900 074 040 02hexagon-head bolt  6
  M 8 X 50
18 900 075 345 02hexagon-head bolt  5
  M 6 X 35 Z1
19 944 101 033 04heat shield  1

Pos__Part_Number__DescriptionRemarkQty.Model
20 900 025 007 02washer  2
  A 8,4
21 900 075 085 02hexagon-head bolt  2
  M 8 X 20
22 N 011 524 7washer  1
  A 6,4
23 900 076 010 02hexagon nut  1
  M 6
24 928 101 195 03fitting bushing  1
25 999 012 034 00straight pin  4
  8 X 12
26 N 011 919 1lid  2
  $ 25 MM
(26) N 011 920 1lid  2
  $ 26 MM
27 944 101 197 03stud  10
28 900 123 101 30sealing ring  1
  A 12 X 18
29 944 606 125 00temperature sensor  1
30 928 606 201 01remote temperature sensor  1
31 900 074 326 08hexagon-head bolt  4
  M 8 X 58
32 999 025 141 02washer  4
  8,1 X 17 X 3
33 900 075 344 02hexagon-head bolt  16
  M 6 X 50 Z1
34 900 075 349 02hexagon-head bolt  4
  M 6 X 42 Z1
35 900 074 139 02hexagon-head bolt  X
  M 8 X 55
36 900 025 007 02washer  8
  A 8,4
37 944 613 150 00sender  1
  for
  oil level

Pos__Part_Number__DescriptionRemarkQty.Model
38 944 101 329 01lid  1
39 999 074 035 02hexagon-head bolt M 5 X 20  3
40 A 944 101 233 02gasket  1
40 944 101 233 02gasket  1
41 999 062 044 02stud M 8 X 30 for tensioner for toothed belt  1
42 N 013 315 1roll pin 5 X 10  1
-999 062 258 08stud M 10 X 55  7
-944 101 185 05stud  2
-944 101 185 06stud M 12 X 110  8
