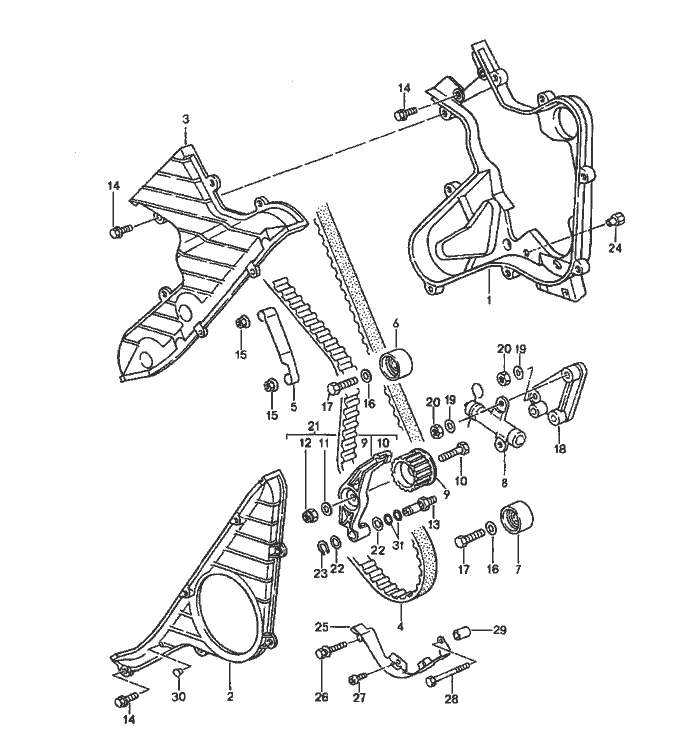

Porsche 968 Antrieb Ausgleichswelle Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		driving mechanism			M44.43/44
		camshaft
1	944 105 033 07	toothed belt covering		1
2	944 105 037 01	toothed belt covering		1
3	944 105 035 01	toothed belt covering		1
4	944 105 323 02	toothed belt		1
5	944 105 213 01	securing clip		1
6	944 105 241 03	roller		1
7	944 105 241 02	roller		1
8	944 105 172 03	tensioner for toothed belt		1
9	944 105 631 10	tensioning roller		1
10	N 010 445 2	hexagon-head bolt		1
		M 10 X 45
11	900 025 008 09	washer		1
12	900 910 034 02	lock nut		1
		M 10
13	944 105 170 04	bearing pin	-94	1
13	944 105 170 04	bearing pin	95	1
14	900 075 357 02	combination Schraube		11
		M 6 X 12 Z1
15	999 084 092 02	lock nut		2
16	900 025 008 09	washer		2
		A 10,5
17	900 075 043 02	hexagon-head bolt		2
		M 10 X 30
18	944 105 173 08	bracket		1
19	900 025 007 02	washer		3
		A 8,4
20	900 076 025 02	hexagon nut		3
		M 8
21	944 105 074 06	tensioner for toothed belt		1

Pos	__Part_Number__	Description	Qty.
22	900 234 182 02	shim 14 X 20 X 0,5	2
23	900 041 023 01	circlip 14 X 1	1
24	944 102 249 00	spacer	3
25	944 102 245 01	guide rail	1
26	900 075 349 02	hexagon-head bolt M 6 X 42 Z1	1
27	N 014 761 2	pan-head Schraube M 6 X 12	2
28	900 074 164 02	hexagon-head bolt M 6 X 70	1
29	944 102 247 00	spacer sleeve	1
30	999 703 164 40	stopper	1
31	999 707 078 40	o-ring 12 X 1,5	2
