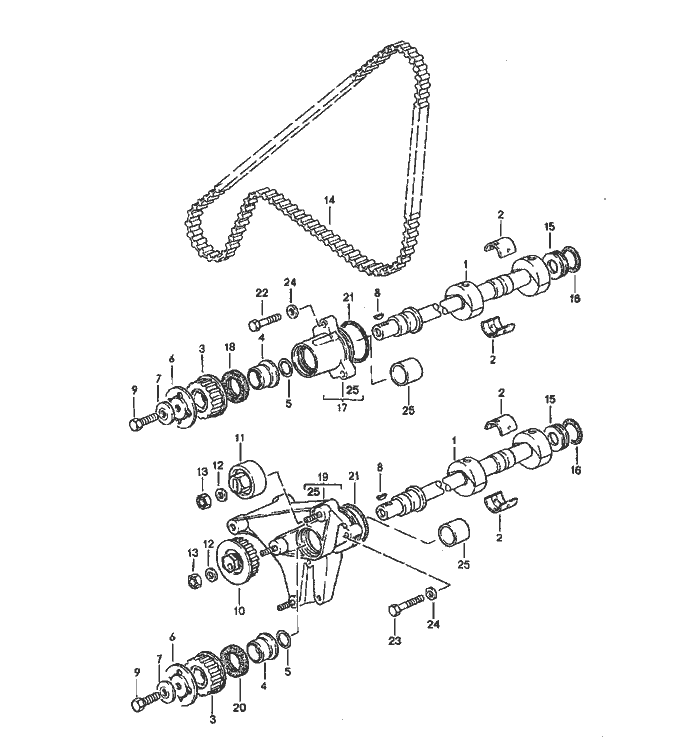

Porsche 968 Antrieb Ausgleichswelle Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		driving mechanism				M44.43/44
		balance shaft
1	944 102 923 00	balance shaft			2
2	944 101 121 10	bearing shell			4
3	944 102 205 04	gear wheel			2
4	928 105 139 02	spacer sleeve			2
5	944 105 321 00	gasket			2
6	944 102 281 04	flange washer			2
7	944 102 213 00	washer			2
8	N 012 708 2	woodruff key			2
9	N 010 275 3	hexagon-head bolt			2
		M 10 X 35
10	944 102 025 07	tensioning roller			1
11	944 102 277 06	roller			1
12	N 011 527 12	washer			2
		A 10,5
13	N 022 149 2	lock nut			2
		M 10
14	944 102 219 04	toothed belt			1
		technical information
		group 1
		NR.15/95
		attention
15	944 101 145 03	locking ring			2
16	999 701 875 40	round seal			2
17	944 101 045 01	bearing case	Left		1
18	999 113 425 40	shaft sealing ring	Left		1
		30 X 47 X 7
19	944 101 042 03	bearing case	Right		1
20	999 113 424 40	shaft sealing ring	Right		1
		30 X 48 X 7

Pos	__Part_Number__	Description	Remark	Qty.	Model
21	999 701 652 40	o-ring 56,7 X 3,53		2
22	N 010 335 5	hexagon-head bolt M 8 X 35		3
23	N 010 360 6	hexagon-head bolt M 8 X 60		2
(23)	N 014 715 3	pan-head Schraube M 8 X 45		1
24	900 025 007 02	washer A 8,4		6
25	944 101 125 02	bearing sleeve		2
(25)	944 101 125 50	bearing sleeve 0,5 MM oversize		2
