Porsche 968 Wasser Pumpe Teile

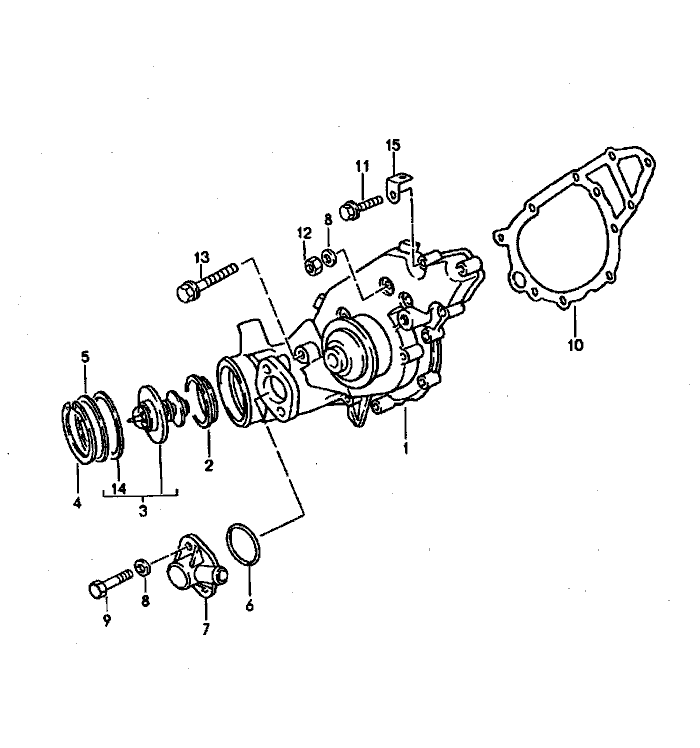

Wasser Pumpe


Pos__Part_Number__DescriptionRemarkQty.Model
  water pump   M44.43/44
1 944 106 003 00water pump  1
2 951 106 155 00sealing ring  1
3 944 106 019 00thermostat  1
4 900 042 025 01circlip  1
  55 X 2
5 900 234 160 00shim  1
6 999 707 283 40round seal  1
  28 X 2,5
7 951 106 313 00housing  1
  black
8 N 011 524 7washer  4
  A 6,4
9 900 067 207 02hexagon-head bolt  2
  M 6 X 20 Z1
10 944 106 132 12gasket  1
  without asbestos
11 900 075 345 02hexagon-head bolt  4
  M 6 X 35 Z1
(11) 900 075 346 02hexagon-head bolt  2
  M 6 X 40 Z1
12 900 076 010 02hexagon nut  4
  M 6
13 900 074 302 02hexagon-head bolt  1
  M 6 X 70 Z1
14 944 106 929 08sealing ring  1
15 477 971 881 Aretaining bracket  1
