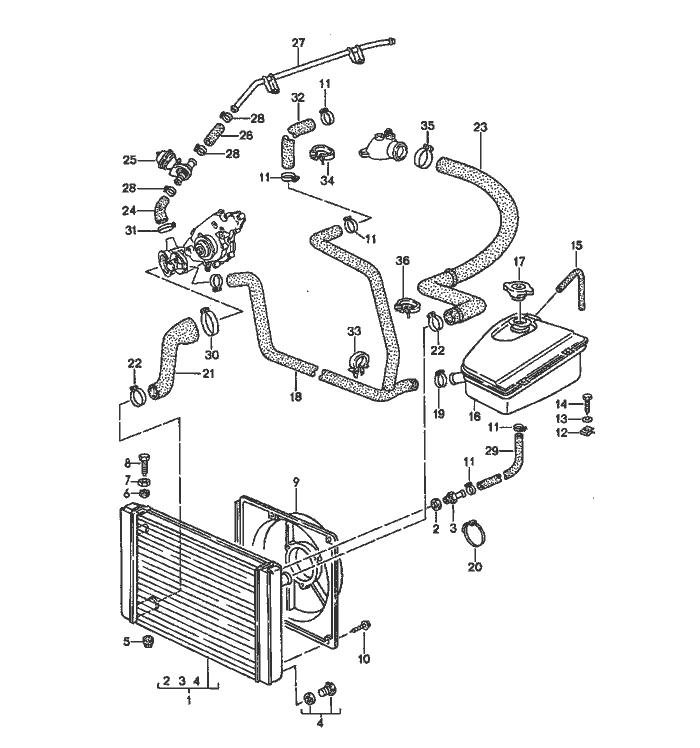

Porsche 968 Wasser Kühlung Teile

Wasser Kühlung


Pos__Part_Number__DescriptionRemarkQty.Model
  water cooling   M44.43/44
1 951 106 031 05radiator  1 M44.43
1 951 106 031 06radiator AUT. 1 M44.44
2 944 106 928 00sealing ring  1
3 944 106 927 00Schraube socket  1
4 944 106 353 01Schraube plug  1
5 951 106 107 00rubber mounting  2
6 951 106 053 00rubber mounting  2
7 N 011 118 11hexagon nut  2
8 900 069 006 02threaded pin  2
9 944 106 141 02airscoop  1 968 CS
(9) 951 106 143 00airscoop  1 968
10 900 187 111 02combination Schraube  6
  6,3 X 12
11 900 272 002 02hose clamp  2
  10 -16
12 477 955 461speed nut  2
13 N 011 524 7washer  6
  A 6,4
14 N 090 172 1combination Schraube  2
  6,3 X 19
15 944 106 251 00water hose  1
16 944 106 125 08expansion tank  1
17 944 106 257 00lid  1
18 944 106 217 05water hose 92 1
18 944 106 217 05water hose 931
19 999 512 392 00hose clamp  4
20 999 513 003 40tie-wrap  4
21 951 106 237 04water hose  1

Pos__Part_Number__DescriptionRemarkQty.Model
22 999 512 500 00hose clamp  5
  32 -50
23 U 944 106 239 11water hose  1
23 944 106 239 11water hose  1
24 944 106 241 04water hose  1
25 928 574 573 03disc valve  1
26 944 106 253 01water hose  1
27 944 106 243 09cooling water tube  1
28 999 512 391 00hose clamp  3
  16 -25
29 951 106 249 01water hose  1
30 999 512 390 00hose clamp  1
  60 -80
31 999 512 421 02hose clamp  1
  23 -35
32 944 106 236 04water hose  1
33 321 971 847 Aclip  1
34 171 971 847 Aclip  1
35 999 512 384 02hose clamp  3
  25 -40
36 321 971 847 Bclip  1
