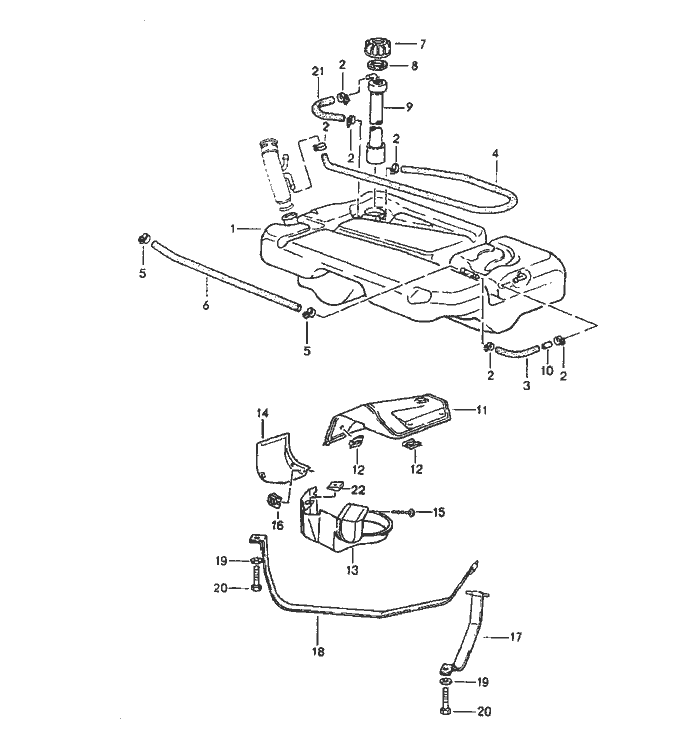

Porsche 968 Kraftstoff Tank Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		fuel tank
1	944 201 021 04	fuel tank			1
2	N 023 570 2	hose clamp			6
		A 9 X 15 ZY
-	999 181 716 50	hose			*
		9,5 X 15,5
3	-	190 MM			1
4	-	1950 MM			1	COUPE
4	941 201 713 11	hose			1	CABRIO
5	N 023 569 2	hose clamp			2
		A 9 X 16 ZY
6	951 201 123 03	hose			1	COUPE
		886 MM
6	941 201 711 11	hose			1	CABRIO
		1250 MM
7	951 201 375 00	union nut			1
8	944 201 327 00	sealing ring			1
9	944 641 037 01	tank gauge			1
10	911 201 263 02	restrictor			1
11	944 201 435 00	heat protection plate			1
12	N 012 653 3	lock washer			4
13	944 201 331 00	covering			1
14	951 201 025 00	lid			1
15	900 143 124 07	tapping Schraube			3
		3,5 X 13
16	N 015 482 1	speed nut			3
17	944 201 345 01	restraining strap	Left		1
18	944 201 342 02	restraining strap	Right		1
19	N 900 741 01	washer			2
		8,4

Pos	__Part_Number__	Description	Remark	Qty.	Model
20	900 075 444 02	hexagon-head bolt		2
		M 8 X 40 SP
21	951 201 227 01	hose		1
22	951 201 233 00	edge protection		1
