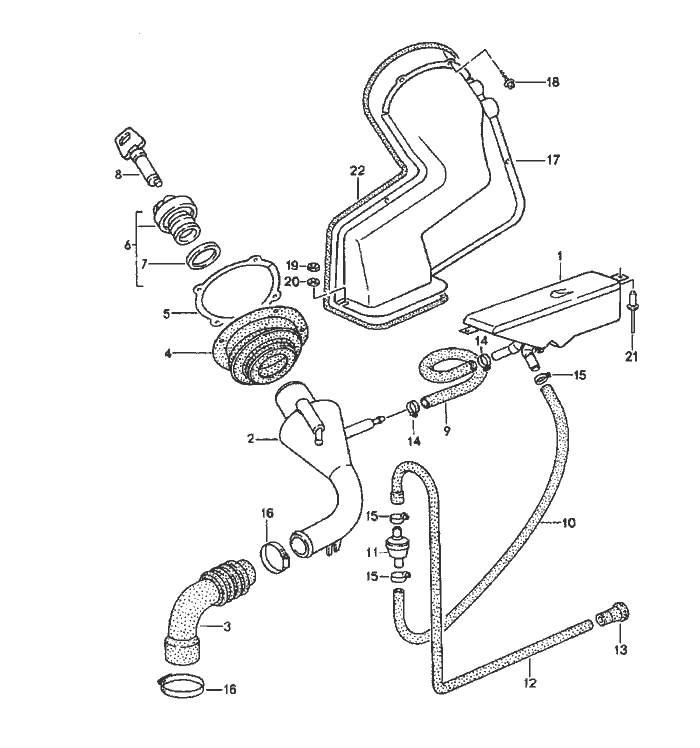

Porsche 968 Filler Neck Teile

Filler Neck


Pos__Part_Number__DescriptionRemarkQty.Model
  filler neck   CABRIO
1 A 941 201 165 11expansion tank 92 1
1 941 201 165 11expansion tank 931
2 941 201 043 14filler neck  1
2 941 201 043 14filler neck  1
3 941 201 353 10bellows  1
4 941 201 349 10sealing rubber  1
5 941 201 393 10support  1
6 944 201 061 01fuel tank cap  1
7 944 201 553 00gasket  1
8 477 201 594lock cylinder  1
  with
  key
  w/o stipulated lock number
8 477 201 594 Alock cylinder  1
  with 1 key
  state lock number
9 941 201 717 10hose  1
10 A 941 201 715 11hose 92 1
  it is necessary to rework
10 941 201 715 11hose 931
11 928 201 083 02shut-off valve  1
12 944 201 159 01breather hose  1
  it is necessary to rework
13 321 201 890 Aend piece  1
14 N 023 565 3hose clamp  2
  A 9 X 21
15 N 023 569 2hose clamp  3
  AR 9 X 16
16 113 201 281 Bhose clamp  2
17 941 201 149 10cover  1

Pos__Part_Number__DescriptionRemarkQty.Model
18 900 143 117 02tapping Schraube 4,2 X 9,5 Z1  4
19 N 011 005 14hexagon nut M 5  2
20 N 011 665 3washer B 5,1  2
21 941 201 273 10rivet  2
22 000 043 202 08packing cord roller  * 1
