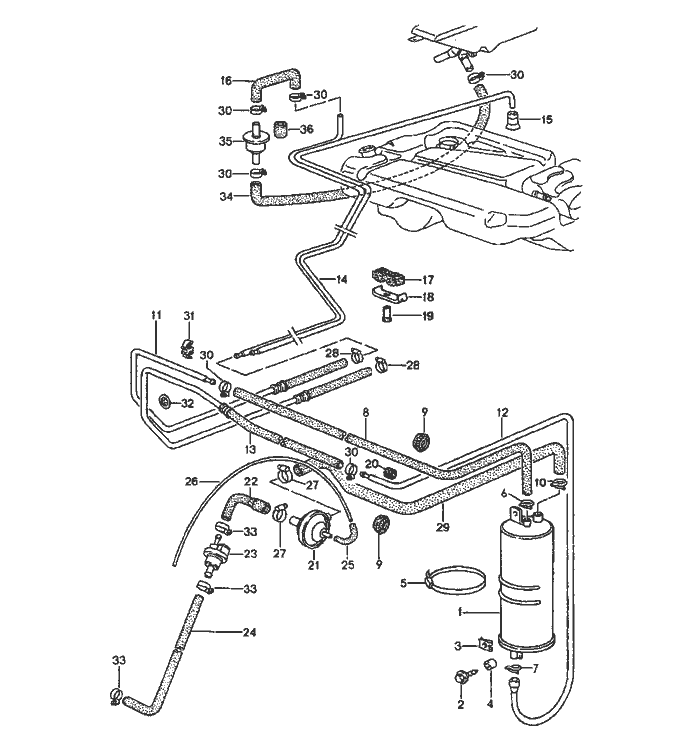

Porsche 968 Tank Ventilation Teile

Tank Ventilation


Pos__Part_Number__DescriptionRemarkQty.Model
  tank ventilation    CABRIO
1 993 201 221 01carbon canister   1
2 N 090 172 1combination Schraube   2
  B 6,3 X 19 Z2
3 N 015 449 1speed nut   2
4 477 201 279sleeve   2
5 N 020 906 3tie-wrap   1
6 999 512 265 02hose clamp   1
7 999 512 364 02hose clamp   1
8 944 201 723 00breather hose   1
9 477 201 381rubber sleeve   2
10 999 512 140 02hose clamp   1
11 941 201 153 11breather pipe   1
12 941 201 737 00vent line   1
13 941 201 163 10line Left Hand Drive 1
14 941 201 173 10line   1
15 321 201 890 Aend piece   1
16 944 201 449 00hose   1
17 941 356 533 10rubber mounting   7
18 941 356 555 11support   7
19 999 511 199 40clamp   7
20 999 702 119 50rubber sleeve   1
21 928 110 429 08vacuum valve   1
22 944 110 182 04moulded hose   1
23 944 605 240 01bleeder valve   1
24 944 110 180 01moulded hose   1
25 928 574 717 03hose elbow   1

Pos__Part_Number__DescriptionRemarkQty.Model
-N 020 139 11polyamide tube 4 X 1  *
26 -720 MM  1
27 999 512 554 00hose clamp 12 -22  2
28 N 023 564 1hose clamp  2
29 944 201 735 00moulded hose  1
30 N 023 569 2hose clamp  6
31 999 591 740 40cable holder  1
32 N 903 350 01clamping washer  1
33 999 512 160 02hose clamp  3
34 941 201 715 11hose it is necessary to rework  1
34 941 201 715 11moulded hose  1
35 928 201 083 02shut-off valve  1
36 477 971 951protective tube  2
