Porsche 968 Manual Getriebe Teile

Manual Getriebe

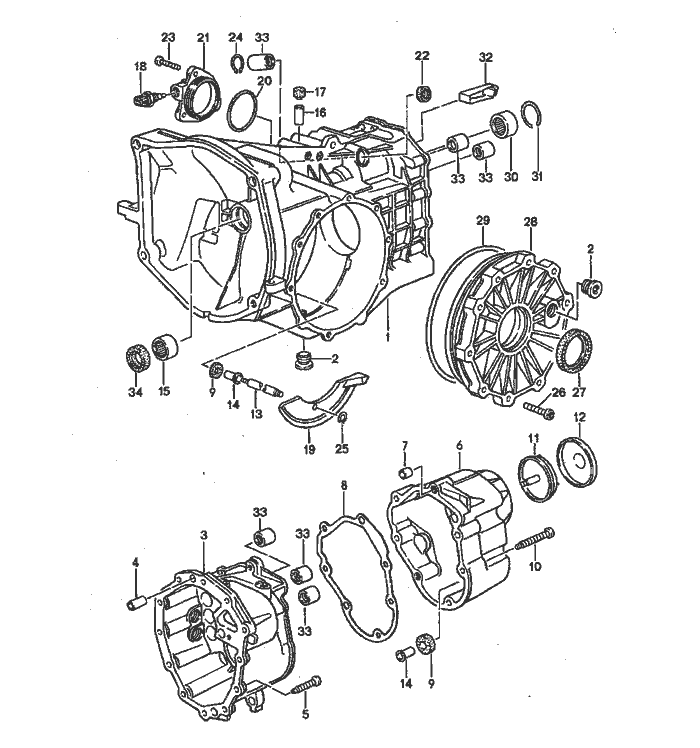

Pos__Part_Number__DescriptionRemarkQty.Model
  manual transmission   G44.00
  replacement transmission
  transmission case
-01E 300 042 Jreplacement transmission  1 G44.00
  complete   M 219
-A 01E 300 042 Kreplacement transmission  1 G44.00
  complete   M 220
  limit.-slip different. 40%
-01E 300 042 Sreplacement transmission  1 G44.00
  complete   M 220
  TORSEN
  limit.-slip different. 40%
1 01E 301 103 Btransmission case  1
2 N 100 371 02Schraube plug  2
  M 22 X 1,5
3 01E 301 211 Ctransmission cover  1
4 014 301 473guide sleeve  2
5 N 903 660 01torx Schraube  12
  M 8 X 36
6 01E 301 231 Qcover  1
7 016 301 299dowel sleeve  2
8 01E 301 235gasket  1
9 012 301 143magnet  2
10 N 903 664 01torx Schraube  7
  M 8 X 60
11 01E 301 279insert  1
12 01E 301 467lid  1
13 01E 409 093Schraube socket  1
14 012 301 183 Abush  2
15 005 311 807needle sleeve  1
16 014 301 473guide sleeve  1
17 014 301 485cap  1

Pos__Part_Number__DescriptionRemarkQty.Model
18 01E 941 521back-up light switch  1
19 01E 409 077guide plate  1
20 010 409 580round seal  1
21 01E 301 453 Dlid  1
  for
  shift rod
22 012 301 457 Cshaft sealing ring  1
23 N 903 659 01torx Schraube  3
  M 8 X 22
24 N 012 301 1circlip  1
  24 X 1,2
25 N 012 410 1circlip  1
  10 X 1
26 N 903 661 01torx Schraube  10
  M 8 X 42
27 999 113 347 40shaft sealing ring  2
28 01E 409 131 Alid  1
29 999 707 038 40round seal  1
30 012 311 123needle sleeve  1
31 N 102 298 01circlip  1
  42 X 1,5
32 01E 301 349 Acover plate  1
33 01E 311 572round socket  6
34 016 311 113 Cradial shaft seal  1
