Porsche 968 Manual Getriebe Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model

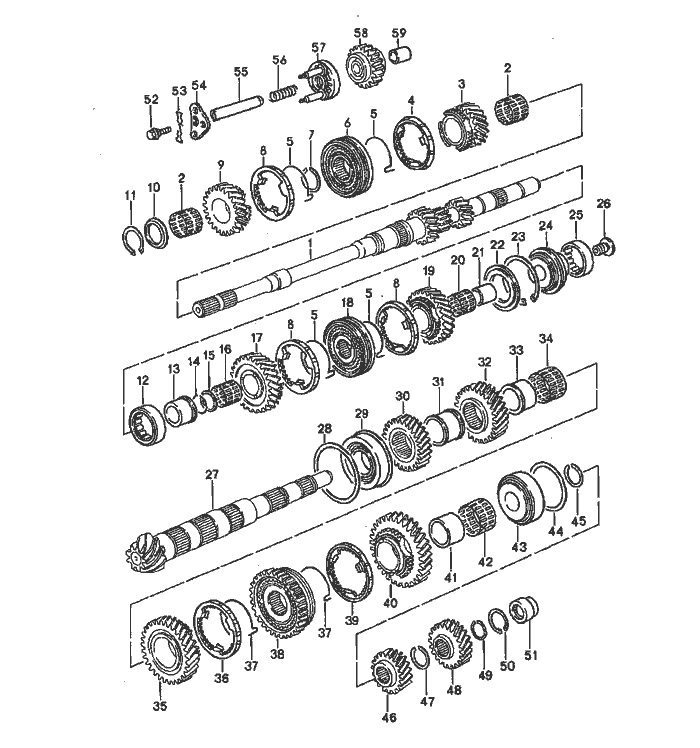

		manual transmission			G44.00
		gears and shafts
		gear wheel sets
		see group
		3/03/00
1	-	drive shaft		1
2	01E 311 115	needle-roller bearing		2
3	-	loose gear wheel		1
		3rd gear
4	012 311 295 D	synchroniser ring		1
5	012 311 312 A	spring		4
6	01E 311 301	synchronising hub		1
7	N 902 944 01	circlip		X
		37 X 1,90
7	N 902 944 02	circlip		X
		37 X 1,93
7	N 902 944 03	circlip		X
		37 X 1,96
7	N 902 944 04	circlip		X
		37 X 1,99
7	N 902 944 05	circlip		X
		37 X 2,02
7	N 902 944 06	circlip		X
		37 X 2,05
8	012 311 295 B	synchroniser ring		3
9	-	loose gear wheel		1
		4th speed
10	01E 311 155	thrust washer		1
11	N 902 944 05	circlip		1
		37 X 2,02
12	01E 311 423	cylindrical-roller bearing		1
13	01E 311 431	inner ring		1
14	N 042 455 1	circlip		1

Pos	__Part_Number__	Description	Remark	Qty.	Model
15	01E 311 413	thrust washer		1
16	01E 311 117	needle cage		1
17	-	loose gear wheel		1
		6th gear
18	01E 311 302	synchronising hub		1
19	-	loose gear wheel		1
		5th gear
20	01E 311 118	needle-roller bearing		1
21	01E 311 122	inner ring		1
22	01E 311 449	insert		1
23	N 905 140 01	circlip		X
		78 X 2,55
23	N 905 140 02	circlip		X
		78 X 2,60
23	N 905 140 03	circlip		X
		78 X 2,65
23	N 905 140 04	circlip		X
		78 X 2,70
24	01E 311 445	four-point bearing		1
25	01E 311 125	cylindrical-roller bearing		1
26	01E 311 308 A	torx Schraube		1
27	-	output shaft		1
28	01E 311 391	shim		X
		0,45 MM
28	01E 311 391 A	shim		X
		0,50 MM
28	01E 311 391 B	shim		X
		0,55 MM
28	01E 311 391 C	shim		X
		0,60 MM
28	01E 311 391 D	shim		X
		0,65 MM

Pos	__Part_Number__	Description	Remark	Qty.	Model
28	01E 311 391 E	shim		X
		0,70 MM
28	01E 311 391 F	shim		X
		0,75 MM
28	01E 311 391 G	shim		X
		0,80 MM
28	01E 311 391 H	shim		X
		0,85 MM
29	01E 311 220	four-point bearing		1
30	-	fixed gear wheel		1
		4th speed
31	01E 311 470	spacer sleeve		1
32	-	fixed gear wheel		1
		3rd gear
33	01E 311 277 A	inner ring		1
34	01E 311 229	needle-roller bearing		1
35	-	loose gear wheel		1
		2nd gear
36	012 311 247 D	synchroniser ring		1
37	012 311 311 A	spring		2
38	01E 311 239 H	synchronising hub		1
39	A 012 311 247 C	synchroniser ring		1
39	012 311 247 E	synchroniser ring		1
40	-	loose gear wheel		1
		1st gear
41	01E 311 267	inner ring		1
42	01E 311 207	needle-roller bearing		1
43	01E 311 375	four-point bearing		1
44	01E 311 393	shim		X
		0,45 MM
44	01E 311 393 A	shim		X
		0,50 MM

Pos	__Part_Number__	Description	Remark	Qty.	Model
44	01E 311 393 B	shim		X
		0,55 MM
44	01E 311 393 C	shim		X
		0,60 MM
44	01E 311 393 D	shim		X
		0,65 MM
44	01E 311 393 E	shim		X
		0,70 MM
44	01E 311 393 F	shim		X
		0,75 MM
44	01E 311 393 G	shim		X
		0,80 MM
44	01E 311 393 H	shim		X
		0,85 MM
44	01E 311 393 J	shim		X
		1,25 MM
45	N 905 130 01	circlip		X
		31 X 1,66
45	N 905 130 02	circlip		X
		31 X 1,75
45	N 905 130 03	circlip		X
		31 X 1,84
45	N 905 130 04	circlip		X
		31 X 1,93
45	N 905 130 05	circlip		X
		31 X 2,02
45	N 905 130 06	circlip		X
		31 X 2,11
45	N 905 130 09	circlip		X
		31 X 2,20
45	N 905 130 12	circlip		X
		31 X 2,29
46	-	fixed gear wheel		1
		6th gear
47	N 905 130 06	circlip		X
		31 X 2,11

Pos	__Part_Number__	Description	Remark	Qty.	Model
47	N 905 130 07	circlip		X
		31 X 2,14
47	N 905 130 08	circlip		X
		31 X 2,17
47	N 905 130 09	circlip		X
		31 X 2,20
47	N 905 130 10	circlip		X
		31 X 2,23
47	N 905 130 11	circlip		X
		31 X 2,26
47	N 905 130 12	circlip		X
		31 X 2,29
48	-	fixed gear wheel		1
		5th gear
49	N 900 607 01	circlip		1
		27 X 1,90
50	999 041 036 00	circlip		1
		37 X 1,50
51	01E 311 429	cylindrical-roller bearing		1
52	088 301 291 A	shouldered bolt		1
53	016 311 861 C	spring		1
54	016 311 853 B	retainer plate		1
55	016 311 519 B	reverse idler gear shaft		1
56	016 311 859 C	compression spring		1
57	016 311 839 D	synchroniser ring		1
58	-	reverse idler gear		1
59	088 311 533	bush		1
