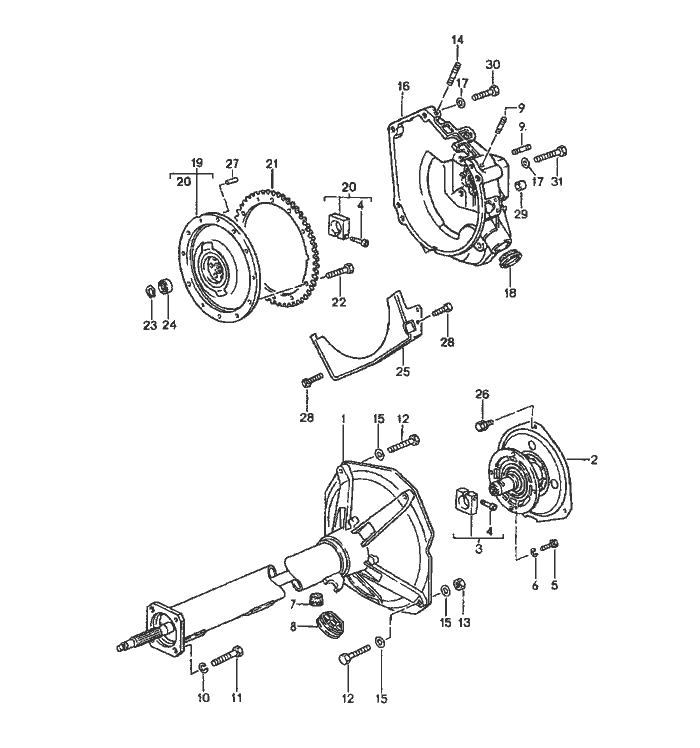

Porsche 968 Tiptronic Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		tiptronic			A44.00
		central tube
1	944 421 107 05	central tube		1
2	944 421 110 01	converter mounting		1
3	922 421 239 02	clamping piece		1
4	931 421 240 00	clamping Schraube		2
5	900 075 029 09	hexagon-head bolt		4
		M 8 X 25
6	N 012 241 1	spring washer		4
		B 8
7	477 521 177	cap		1
8	477 521 277 C	cap		1
9	999 062 055 02	stud		2
		M 6 X 12
10	900 027 016 02	lock ring		4
		B 10
11	N 010 275 4	hexagon-head bolt		4
		M 10 X 35
12	900 075 411 02	hexagon-head bolt		4
		M 10 X 65
13	N 011 010 6	hexagon nut		2
		M 10
14	999 062 073 02	stud		1
		M 8 X 15
15	900 025 008 09	washer		6
		A 10,5
16	944 116 111 05	clutch housing		1
17	900 025 009 02	washer		4
		A 13
18	931 116 177 00	cap		2
19	944 116 065 04	damper		1
20	922 421 255 00	clamping piece		1

Pos	__Part_Number__	Description	Remark	Qty.	Model
21	944 116 239 04	starter ring		1
22	N 014 717 2	pan-head Schraube		9
		M 8 X 40
23	900 273 002 01	circlip		1
		17 X 1
24	944 116 631 00	spacer sleeve		1
		1,00
24	944 116 631 01	spacer sleeve		X
		2,00
24	944 116 631 02	spacer sleeve		X
		3,00
24	944 116 631 03	spacer sleeve		X
		4,00
24	944 116 631 04	spacer sleeve		X
		5,00
24	944 116 631 05	spacer sleeve		X
		6,00
24	944 116 631 06	spacer sleeve		X
		7,00
24	944 116 631 07	spacer sleeve		X
		8,00
25	944 116 093 01	protective plate		1
26	900 378 012 02	hexagon-head bolt		3
		M 10 X 1,25 X 20
27	N 013 210 2	straight pin		3
		6 M 6 X 16
28	900 075 040 02	hexagon-head bolt		2
		M 10 X 20
29	999 209 008 02	dowel sleeve		2
		10,3 X 15 X 11
30	N 010 142 2	hexagon-head bolt		2
		M 12 X 1,5 X 50
31	N 010 191 2	hexagon-head bolt		2
		M 12 X 1,5 X 95
