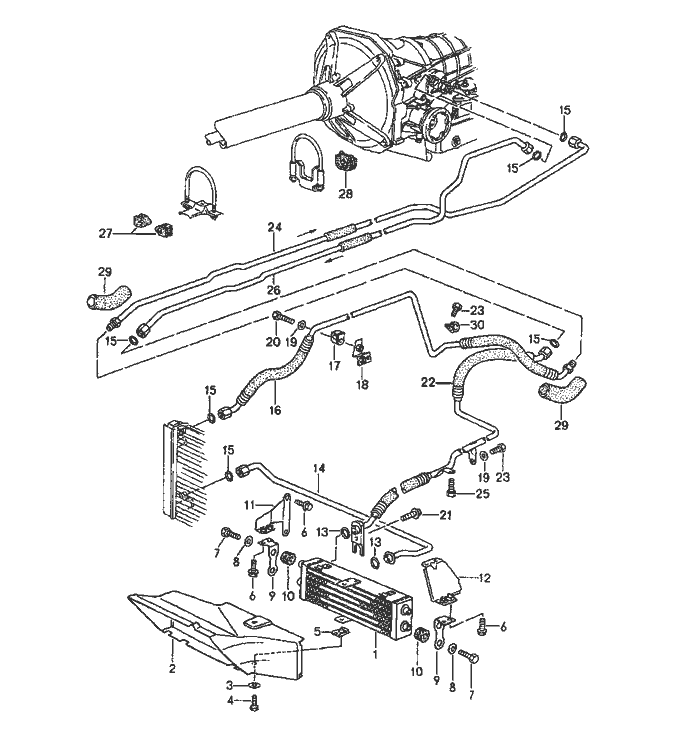

Porsche 968 Tiptronic Teile

Tiptronic


Pos__Part_Number__DescriptionRemarkQty.Model
  tiptronic   A44.00
  atf cooler
  atf lines
1 944 207 309 00transmission oil cooler  1
2 944 307 411 00air duct  1
3 900 151 027 02washer  2
  B 5,3
4 N 013 884 4tapping Schraube  2
  4,8 X 13
5 999 591 489 02speed nut  2
  B 4,8
6 900 075 374 02hexagon-head bolt  6
  M 6 X 14 Z2
7 999 072 005 09hexagon-head bolt  4
  M 6 X 12
8 N 011 612 3washer  4
  R 7 X 22 X 2
9 944 207 315 02support  2
10 056 129 669 Bgrommet  4
11 944 307 407 00support  1
12 944 504 507 00support  1
13 900 331 022 40o-ring  2
14 944 307 017 01oil tube  1
15 900 331 010 40o-ring  6
16 944 307 010 06oil pipe  1
17 999 511 223 40clip  2
18 944 107 333 00support  2
19 N 011 524 7washer  3
  A 6,4
20 N 010 220 3hexagon-head bolt  2
  M 6 X 30

Pos__Part_Number__DescriptionRemarkQty.Model
21 N 090 378 1pan-head Schraube M 8 X 25 Z1  1
22 944 307 011 05oil pipe  1
23 N 010 215 13hexagon-head bolt M 6 X 15  2
24 944 307 009 05oil pipe  1
25 900 075 079 02hexagon-head bolt M 8 X 22  1
26 944 307 008 04oil pipe  1
27 944 307 190 01rubber mounting  2
28 944 307 190 03rubber mounting  1
29 999 181 743 40protective tube  2
30 999 511 069 02clip  1
