Porsche 968 Power Lenkung Teile

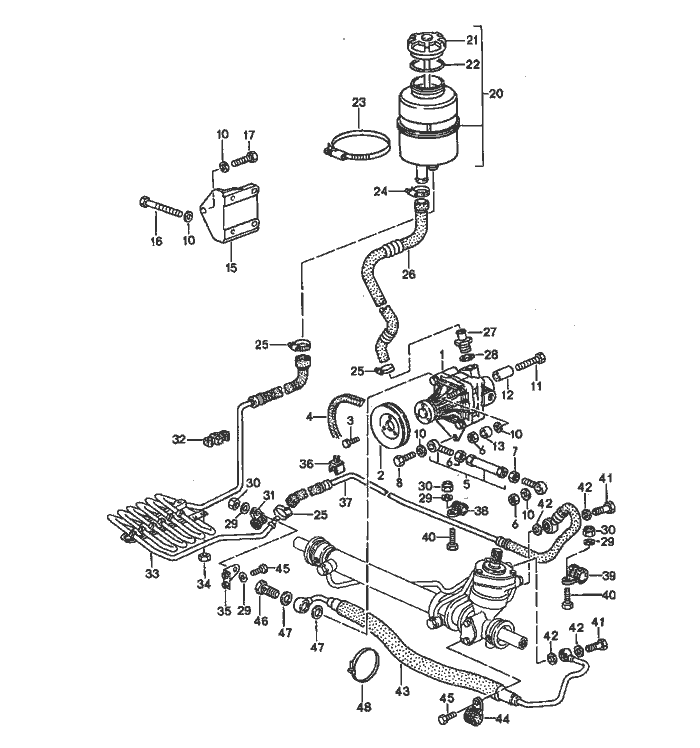

Pos	__Part_Number__	Description	Remark	Qty.	Model
		power steering
		vane type pump
		lines
1	944 347 432 08	vane type pump		1
2	944 347 437 03	pulley		1
3	999 072 005 09	hexagon-head bolt		3
		M 6 X 12
4	999 192 236 50	narrow v-belt		1
		9,5 X 950
5	944 347 053 02	strut		1
6	900 076 025 02	hexagon nut		3
		M 8
7	N 011 008 24	hexagon nut		1
		M 8
		left
8	900 075 029 09	hexagon-head bolt		1
		M 8 X 25
10	900 025 007 02	washer		8
		A 8,4
11	N 010 359 4	hexagon-head bolt		1
		M 8 X 38
12	944 347 441 02	sleeve		1
		26 MM
13	944 347 442 00	dowel sleeve		1
		13 MM
15	944 101 147 01	bracket		1
16	N 010 361 4	hexagon-head bolt		4
		M 8 X 65
17	N 010 335 5	hexagon-head bolt		1
		M 8 X 35
20	928 347 015 05	oil tank		1
21	928 347 925 00	lid		1
22	928 347 927 00	gasket		1

Pos	__Part_Number__	Description	Remark	Qty.	Model
23	999 512 350 02	hose clamp			1
		$ 80-100 MM
24	999 512 346 02	hose clamp			1
		16-25
25	N 023 570 2	hose clamp			3
		A 15X9
26	944 347 445 05	moulded hose			1
27	999 230 357 02	connection piece			1
28	N 100 184 01	sealing ring			1
		16 X 20
29	N 011 524 7	washer			5
		A 6,4
30	900 910 012 02	lock nut			3
		M 6
31	999 511 116 02	clamp			1
		10 X 15
32	999 507 374 40	line bracket			1
33	944 347 069 01	radiator coil			1
34	N 015 082 2	hexagon nut			3
		M 6
35	944 347 278 00	support			1
36	944 347 467 00	cable clip			1
37	944 347 449 06	return line	Left Hand Drive		1
38	999 511 153 02	clip			1
		8 X 15
39	N 020 626 2	clamp			1
		16 X 15
40	900 075 016 02	hexagon-head bolt			2
		M 6 X 22
41	999 134 032 02	banjo bolt	Left Hand Drive		2
		M 12 X 1,5
42	900 123 026 20	sealing ring	Left Hand Drive		4
		12 X 15,5

Pos	__Part_Number__	Description	Remark	Qty.	Model
43	944 347 447 02	pressure line	Left Hand Drive		1
44	999 511 066 02	clamp 18 X 15	Left Hand Drive		1
45	999 072 005 09	hexagon-head bolt M 6 X 12			3
46	900 134 007 02	banjo bolt A 8			1
47	900 123 042 20	sealing ring 14 X 18			2
48	999 513 010 40	tie-wrap 9 X 250			1
