Porsche 968 Lenkung Rad Lenkung Column Lenkung Lock Pa...

Lenkung Rad Lenkung Column Lenkung

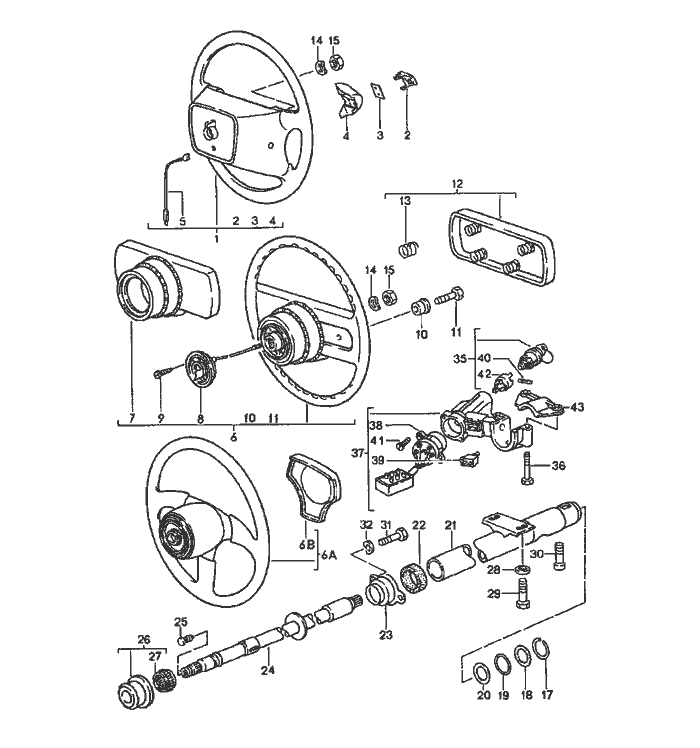

Pos__Part_Number__DescriptionRemarkQty.Model
  steering wheel steering column steering lock
1 944 347 804 51sports steering wheel airbag   1
 1AJblack
 9WWcobalt blue  -93
 4XWmagenta  -93
 2JZmarine blue  -93
1 944 347 804 52sports steering wheel airbag   1
 6XLclassic grey
 9WWcobalt blue  -93
 2JZmarine blue  -93
 H24midnight blue  94-
 T15chestnut brown  94
2 944 347 835 00horn button Left 1
 01Cblack
 4XCclassic grey
 6ZFcobalt blue  -93
 6WXmagenta  -93
 9JJmarine blue  -93
 2GSmidnight blue  94
 4PVchestnut brown  94
2 944 347 836 00horn button Right 1
 01Cblack
 4XCclassic grey
 6ZFcobalt blue  -93
 6WXmagenta  -93

Pos__Part_Number__DescriptionRemarkQty.Model
 9JJmarine blue  -93
 2GSmidnight blue  94
 4PVchestnut brown  94
3 944 347 884 00contact spring   2
4 944 347 831 00switch housing Left 1
 01Csatin black
 4XCclassic grey
 6ZFcobalt blue  -93
 6WXmagenta  -93
 9JJmarine blue  -93
 2GSmidnight blue  94
 4PVchestnut brown  94
4 944 347 832 00switch housing Right 1
 01Csatin black
 4XCclassic grey
 6ZFcobalt blue  -93
 6WXmagenta  -93
 9JJmarine blue  -93
 2GSmidnight blue  94
 4PVchestnut brown  94
5 944 612 355 00wiper contact   1
6 928 347 084 07sports steering wheel leather $ 363   1 M 431
 1AJblack
 8YRblack
 7WHclassic grey
 6XLclassic grey

Pos__Part_Number__DescriptionRemarkQty.Model
 9WWcobalt blue -93
 4XWmagenta -93
 2JZmarine blue -93
6 928 347 084 08sports steering wheel leather with elevated hub $ 363  1 M 018
 1AJblack
 8YRblack
 7WHclassic grey
 9WWcobalt blue -93
 4XWmagenta -93
 2JZmarine blue -93
7 928 347 857 02lining  1
 1DBblack
 5XLclassic grey
 6ZHcobalt blue -93
 5XWmagenta -93
 5KFmarine blue -93
8 928 347 099 00slip ring  1
9 113 415 869oval-head Schraube M 3,5 X 10  3
10 321 419 779 Ainsulating bush  3
11 113 415 867 Ahexagon-head bolt M 4 X 15  3
12 944 347 859 05padded cap leather  1
 8YRblack
 6XLclassic grey
 9WWcobalt blue -93

Pos__Part_Number__DescriptionRemarkQty.Model
 4XWmagenta  -93
 2JZmarine blue  -93
13 171 419 697spring   3
14 N 012 238 1spring washer   1
  B 16
15 900 078 006 01hexagon nut   1
  M 16 X 1,5
17 U 999 234 004 00shim   1
18 U 999 042 039 01snap ring   1
17 999 042 017 01snap ring   1
18 999 234 023 01shim   1
19 999 707 138 40o-ring   1
20 999 234 022 01shim   1
21 944 347 063 07steering column tube   1
  airbag
21 944 347 063 04steering column tube   1
22 999 707 008 40o-ring   1
  airbag
22 411 417 613rubber mounting   1
23 944 347 076 00support ring   1
  airbag
23 411 417 605support ring   1
24 944 347 019 04steering column Left Hand Drive 1
(24) 944 347 019 10steering column Left Hand Drive 1
  airbag
(24) 944 347 019 11steering column   1 CABRIO
  airbag
25 944 347 483 00stopper   1
26 477 419 059needle sleeve   1
27 113 415 511needle-roller bearing   1

Pos__Part_Number__DescriptionRemarkQty.Model
28 900 025 041 02washer  2
  A 8,4
29 999 074 028 02shear bolt  2
30 900 067 342 02pan-head Schraube  1
  M 8 X 22
31 N 010 215 13hexagon-head bolt  2
  M 6 X 15
32 211 805 243spring washer  2
  steering lock
35 944 538 075 00lock cylinder  1
  w/o stipulated lock number
(35) 944 538 075 01lock cylinder  1
  with stipulated lock number
  for
  steering lock
  944.347.075.03
(35) 944 538 075 02lock cylinder  1
  w/o stipulated lock number
(35) 944 538 975 02lock cylinder  1
  with stipulated lock number
  for
  steering lock
  944.347.075.06
36 944 347 343 01shear bolt  2
37 A 944 347 975 03housing  1
  for
  steering lock
37 944 347 075 06housing  1
  for
  steering lock
38 944 613 024 01ignition starter switch  1
39 911 613 125 00buzzer contact  1
40 944 347 363 00lock  1
41 N 014 122 8oval-head Schraube  2

Pos__Part_Number__DescriptionRemarkQty.Model
42 944 538 183 00control cams  1
  for steering lock 944.347.075.03
42 944 347 169 00control cams  1
  for
  steering lock 944.347.075.06
43 944 347 351 02retainer plate  1
