Porsche 968 Luftbag Teile

Luftbag

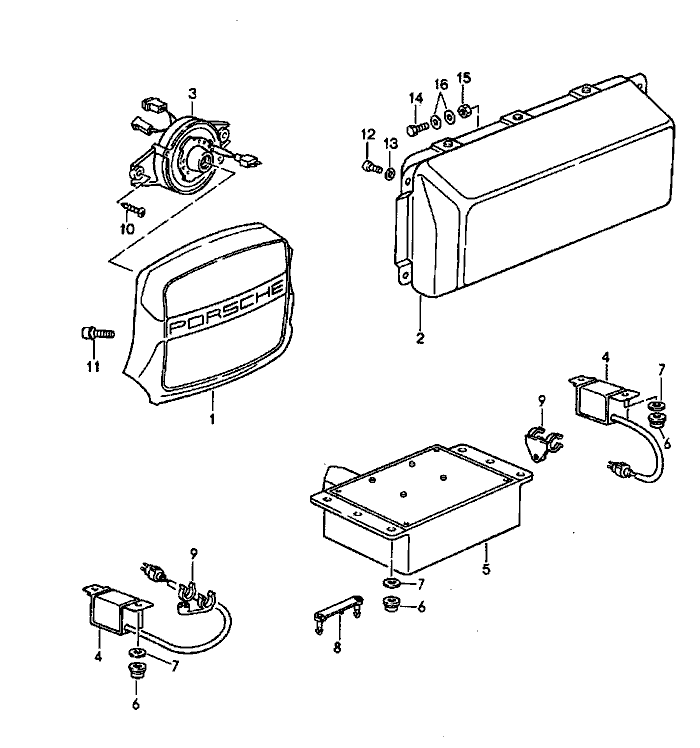

Pos__Part_Number__DescriptionRemarkQty.Model
  airbag
(1) 968 347 089 00airbag unit driver's side   1
 2JZmarine blue  -93
 9WWcobalt blue  -93
 7WHclassic grey
 4XWmagenta use also: POS. 11  -93
1 968 347 089 01airbag unit driver's side   1
 8YRblack
 6XLclassic grey
 2JZmarine blue  -93
 9WWcobalt blue  -93
 4XWmagenta  -93
 H24midnight blue  94-
 T15chestnut brown use also: POS. 11  94
2 944 803 071 02airbag unit passenger's side   1
3 A 928 652 211 00support for contact  -93 1
3 928 652 211 01support for contact  941
4 928 613 220 02front sensor   2
5 944 618 217 02control unit Left Hand Drive 1
-944 612 083 02wiring harness control unit airbag Left Hand Drive 1
6 944 618 401 00nut M 6   6

Pos__Part_Number__DescriptionRemarkQty.Model
(6) 900 076 010 02hexagon nut M 6  2
7 N 011 524 7washer A 6,4  4
8 964 612 901 00securing clip blue  1
9 321 971 898 Bsupport  2
10 N 013 968 7tapping Schraube B 4,8 X 13 -93 2
(10) N 014 133 8oval-head Schraube M 5 X 12 942
11 999 073 030 02pan-head Schraube M 6 X 19  2
12 999 218 030 08pan-head Schraube M 6 X 10  4
13 N 011 524 7washer A 6,4  4
14 999 072 005 09hexagon-head bolt M 6 X 12  1
15 900 076 010 02hexagon nut M 6  1
16 N 011 666 7washer B 6,4  2
