Porsche 968 Vibration Damper Teile

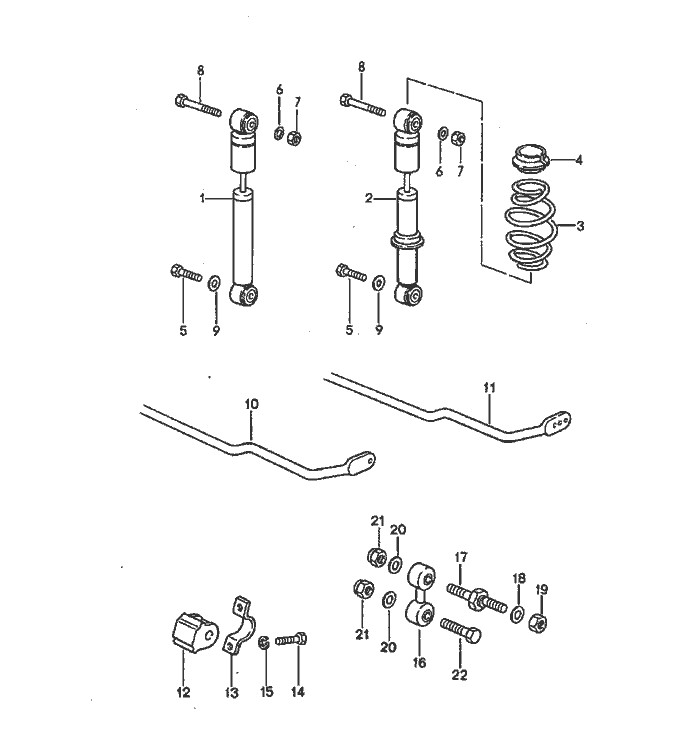

Pos	__Part_Number__	Description	Remark	Qty.	Model
		vibration damper
		stabiliser
1	944 333 032 04	vibration damper		2
		-fichtel + sachs
2	944 333 032 03	vibration damper		2	M 030
		-koni
3	951 333 531 31	additional spring		1	M 030
		1 set
		identification
	504	green
4	944 333 526 01	concave washer		2	M 030
5	900 082 054 02	hexagon-head bolt		2
		M 14 X 1,5 X 85
6	043 101 129	washer		2
		B 12
7	N 022 141 1	lock nut		2
		M 12 X 1,5
8	900 082 044 02	hexagon-head bolt		2
		M 12 X 1,5 X 125
9	999 025 062 02	washer		2
		stabiliser
10	477 511 411	stabiliser		1
		$ 16 MM
10	477 511 413	stabiliser		1	M 030/249
		$ 18 MM
11	944 333 701 01	stabiliser		1	M 030/480
		$ 19 MM
12	477 411 313 A	stabiliser mounting		2
		$ 16 MM
12	477 411 313 B	stabiliser mounting		2	M 030/249
		$ 18 MM
12	964 333 792 00	rubber mounting		2	M 030/480
		$ 19 MM
13	113 411 333	retaining bow		2

Pos	__Part_Number__	Description	Remark	Qty.	Model
14	900 075 085 02	hexagon-head bolt M 8 X 20		4
15	900 027 015 02	lock ring B 8		4
16	477 511 051 A	stabiliser mounting		2
17	477 511 515	camber eccentric		2
18	N 011 531 7	washer A 13		2
19	N 022 141 4	lock nut M 12 X 1,5		2
20	N 011 527 12	washer A 10,5		4
21	N 022 149 2	lock nut M 10		4
22	N 010 452 4	hexagon-head bolt M 10 X 52		2
