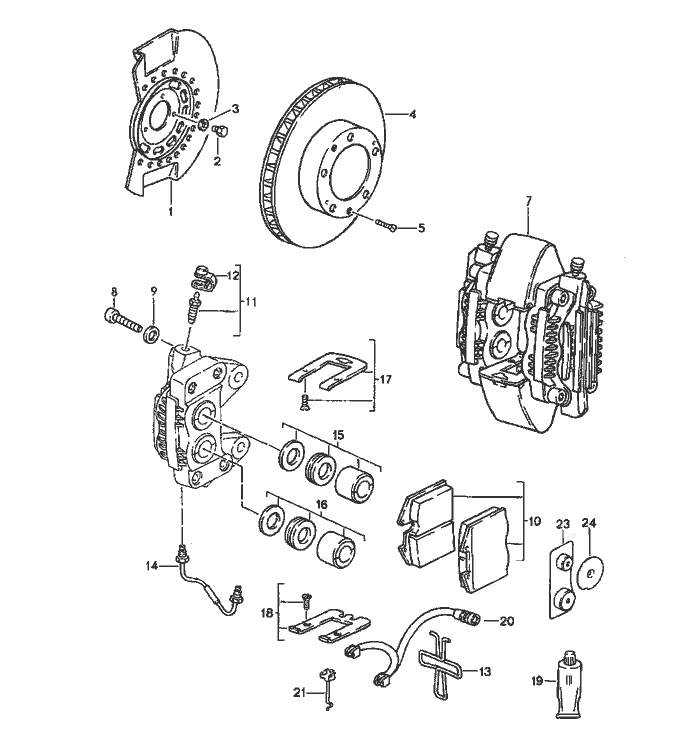

Porsche 968 Disc Bremse Vorder Achse Teile

Disc Bremse Vorder Achse


Pos__Part_Number__DescriptionRemarkQty.Model
  disc brake front axle
  see technical information GR.4, NR.1/93
1 951 351 085 03cover plate Left 1
(1) 951 351 086 03cover plate Right 1
2 N 010 227 2hexagon-head bolt M 7 X 12   6
3 900 028 019 08spring washer B 7   6
4 951 351 041 02brake disc   2
(4) 965 351 041 01brake disc Left 1 M 030
(4) 965 351 042 01brake disc Right 1 M 030
5 N 033 167 1countersunk-head Schraube M 6 X 12   4
7 951 351 421 03fixed calliper with protection cap piston $ 36/40 Left 1
7 928 351 421 03fixed calliper with protection cap piston $ 36/44 Left 1 M 030
(7) 951 351 422 03fixed calliper with protection cap piston $ 36/40 Right 1
(7) 928 351 422 03fixed calliper with protection cap piston $ 36/44 Right 1 M 030
8 N 010 137 2hexagon-head bolt M 12 X 1,5 X 35   4

Pos__Part_Number__DescriptionRemarkQty.Model
8 900 067 154 02pan-head Schraube  4 M 030
  M 12 X 1,5 X 70
9 900 028 014 02spring washer  4
  B 12
9 N 011 564 2washer  4 M 030
  B 13
10 951 351 939 08brake pad repair set  1
  without asbestos
10 A 993 351 939 01brake pad repair set  1 M 030
10 993 351 939 01brake pad repair set  1 M 030
  without asbestos
11 930 351 919 00ventilation valve  4
12 930 351 927 00dust boot  4
13 951 352 950 00expanding spring  2
13 928 351 950 01expanding spring  2 M 030
14 951 351 971 00connecting line  2
14 928 351 971 00connecting line  2 M 030
15 951 351 919 11gasket set  2
  with
  protection cap
  $ 40
15 928 351 919 10repair kit  2 M 030
  with
  protection cap
  $ 44
16 951 351 919 10repair kit  2
  with
  protection cap
  $ 36
17 964 351 959 01repair kit  2
  spring plate
17 993 351 959 01repair kit  2 M 030
  spring plate
18 964 351 959 00repair kit  2
  spring plate

Pos__Part_Number__DescriptionRemarkQty.Model
18 993 351 959 00repair kit spring plate  2 M 030
19 000 043 020 00optimoly TA 1 100-gramme tube  X
(19) 000 043 117 00brake cylinder paste 1 50-g tube  X
20 944 612 365 01warning contact use also:  2
21 928 612 361 00cable holder  2
23 951 351 089 03vibration damper for  4 M 030
  fixed calliper $ 19,7/27,3
24 964 351 096 01damping plate for piston $ 36  4
(24) 964 351 096 02damping plate for  4
  piston $ 40
