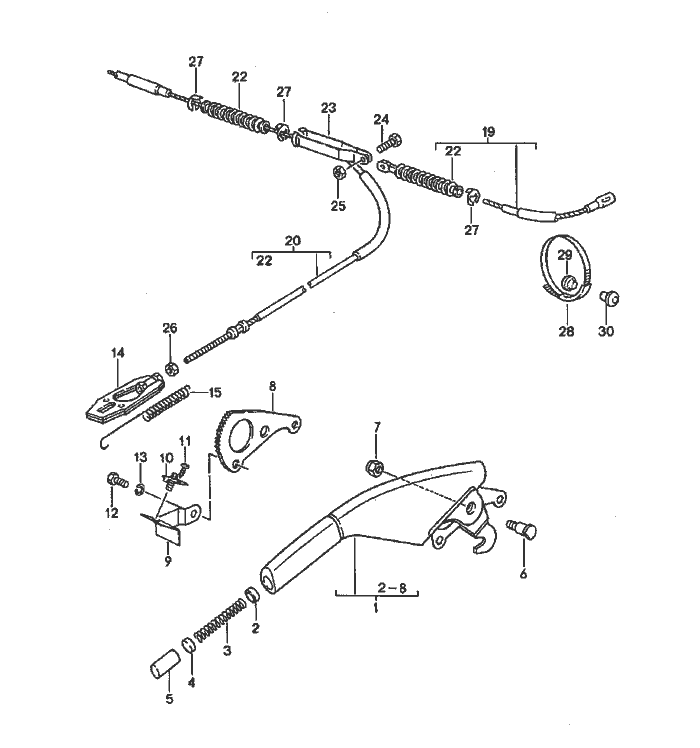

Porsche 968 Parking-brake Lever Teile

Parking Bremse Lever


Pos__Part_Number__DescriptionRemarkQty.Model
  parking-brake lever
1 944 424 051 01parking-brake lever leatherette  1
 8YRblack
 6XLclassic grey
 6YLmagenta -93
(1) 944 424 051 50parking-brake lever leather  1
 8YRblack
 6XLclassic grey
 9YLcobalt blue -93
 6YLmagenta -93
 8ZLlight grey -93
 4YUcashmere beige
 H05marine blue -93
 M05matador red -93
 D35carrara grey -93
 J25sherwood green -93
 H24midnight blue 94-
 T15chestnut brown 94
 3QNmarble grey 94-
 G43provence blue 94-
 K03cedar green 94
 8SEflamenco red 94
2 914 424 258 00guide sleeve  1
3 901 424 543 00compression spring  1
4 901 424 593 01rubber ring  1
5 944 424 523 00push button  1

Pos__Part_Number__DescriptionRemarkQty.Model
6 928 424 527 00bearing pin   1
7 900 084 004 02hexagon nut   1
8 928 424 541 14locking segment   1
9 944 424 535 00support Left Hand Drive 1
10 968 613 601 00contact switch   1
11 N 013 957 5tapping Schraube   1
  B 3,5 X 9,5
12 N 010 241 0hexagon-head bolt   2
  M 8 X 22 SB
13 900 025 007 02washer   2
  A 8,4
-999 703 387 40cap   1
14 928 424 033 00turnbuckle   1
15 944 424 537 00return spring   1
19 951 424 071 02parking-brake cable   1
  short
20 951 424 072 02parking-brake cable   1
  long
22 477 609 715sealing sleeve   2
23 477 711 965compensating bow   1
24 N 010 217 9hexagon-head bolt   1
  M 6 X 20
25 900 910 012 02lock nut   1
  M 6
26 900 076 010 02hexagon nut   1
  M 6
27 999 166 027 02lock   3
  8
28 477 711 979retaining strap   2
29 N 013 530 3rivet   2
30 N 013 510 1compression rivet   2

Pos__Part_Number__DescriptionRemarkQty.Model
31 901 424 509 01stop   1
