Porsche 968 Bremse Teile

Bremse

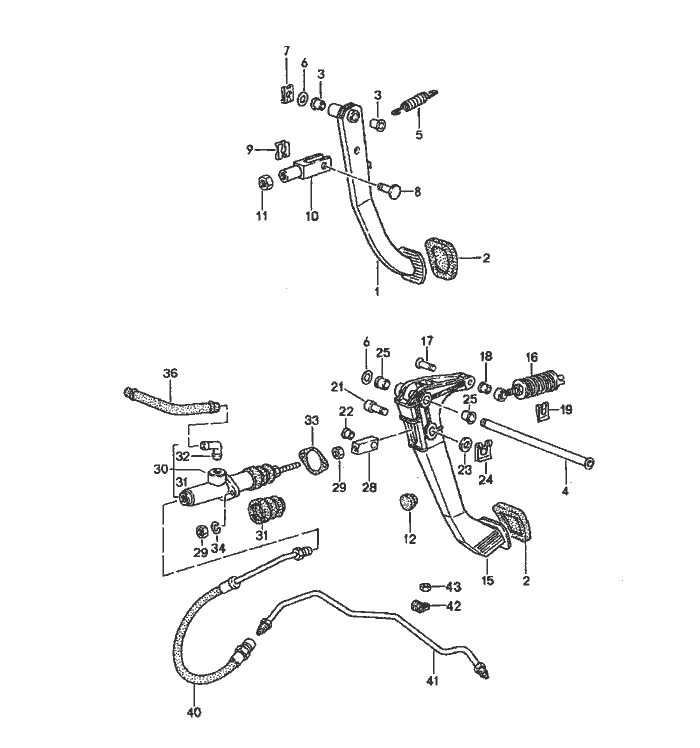

Pos__Part_Number__DescriptionRemarkQty.Model
  brake
  clutch
  pedals
  left-hand drive
  see technical information
  GR. 3, NR.2/93
1 944 423 051 03brake pedal  1
(1) 944 423 051 05brake pedal  1 TIPTRONIC
2 321 721 173pedal cap  2
(2) 827 723 173pedal cap  1 TIPTRONIC
3 999 924 003 40bush  2
  12 X 13,6
4 944 423 085 00bolt  1
(4) 944 423 061 06bolt  1 TIPTRONIC
5 321 721 191return spring  1
6 311 955 255washer  2
7 999 166 077 02safety clip  1
8 999 088 010 02bolt  1
  10 X 28 X 23,5
9 999 021 001 07connector  1
10 999 166 061 30clevis  1
11 N 011 010 6hexagon nut  1
  M 10
12 999 703 183 40buffer  1 TIPTRONIC
15 944 423 038 02clutch pedal  1
16 477 721 353 Aclutch power spring  1
17 999 088 019 02bolt  1
18 999 924 001 40bush  1
19 999 166 075 02safety clip  1
21 944 423 387 00bolt  1

Pos__Part_Number__DescriptionRemarkQty.Model
22 999 924 002 40plain bearing  1
23 900 025 008 09washer  1
  A 10,5
24 999 166 076 02safety clip  1
25 999 924 039 00bush  2
28 928 423 517 00clevis  1
29 900 076 025 02hexagon nut  3
  M 8
30 944 423 149 00clutch master cylinder  1
31 928 423 908 00bellows  1
32 477 721 177angled pipe  1
33 928 423 191 00gasket  1
34 N 012 229 3spring washer  2
  A 8
-999 181 021 50hose  *
  12,5 X 7,5
36 -270 MM  1
40 944 423 177 01clutch hose  1
41 944 423 091 23clutch pipeline  1
42 N 020 680 1clamp  1
43 N 011 005 14hexagon nut  1
  M 5
