Porsche 968 Body Vorder Section Teile

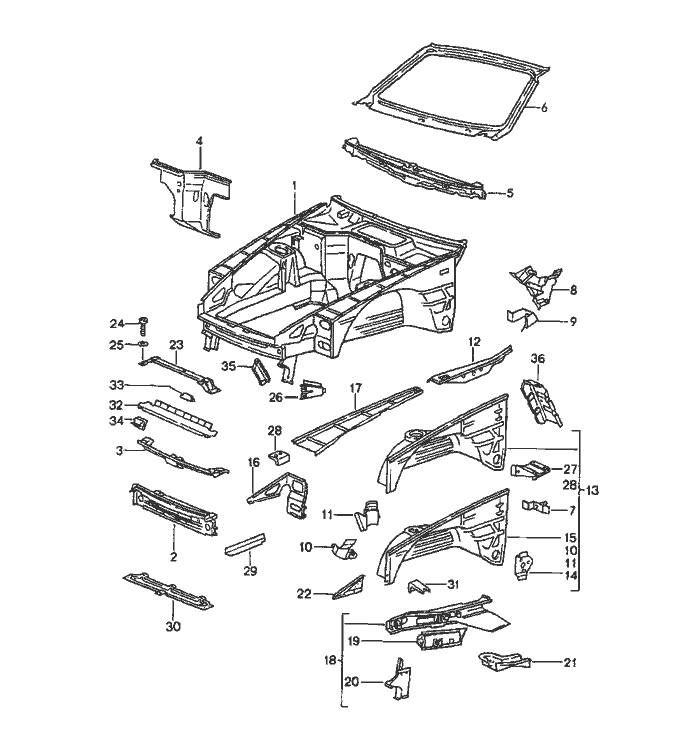

Body Vorder Section


Pos__Part_Number__DescriptionRemarkQty.Model
  body front section
1 944 501 011 32body front section Left Hand Drive1
 GRVprime coated
2 944 502 051 05cross member  1
  with
  end plate
3 944 503 395 00lock carrier  1
4 951 502 201 00firewall Left1
(4) 944 502 202 03firewall Right1
5 944 502 079 03cross member  1
6 944 502 911 02windscreen frame  1
10 944 501 094 01support  1
  ignition coil
11 944 501 292 00support  1
  expansion tank
12 944 502 119 04side member Left1
  upper
(12) 944 502 120 04side member Left Hand Drive \/ Right Side1
  upper
13 944 501 901 05wheel housing Left1
(13) 944 501 902 05wheel housing Right1
14 944 502 071 00mounting  1
15 944 501 101 04wheel housing Left1
(15) 944 501 102 04wheel housing Right1
16 A 944 501 345 00wheel housing Left1
  front part
16 944 501 345 01wheel housing Left1
  front part
 GRVprime coated
(16) A 944 501 346 00wheel housing Right1
  front part

Pos__Part_Number__DescriptionRemarkQty.Model
(16) 944 501 346 01wheel housing Right 1
  front part
 GRVprime coated
17 944 501 531 00wheel housing Left 1
  upper part
(17) 944 501 212 00wheel housing Right 1
  upper part
18 944 501 017 02side member Left 1
(18) 944 501 018 02side member Right 1
19 944 501 081 03filler plate Left 1
(19) 944 501 082 03filler plate Right 1
20 944 501 045 00separator Left 1
(20) 944 501 046 00separator Right 1
21 951 501 165 00closing element Left 1
(21) 951 501 166 00closing element Right 1
22 944 501 461 00supporting plate Left 1
(22) 944 501 862 00supporting plate Right 1
23 944 504 175 00cross member   1
24 N 014 701 7pan-head Schraube   4
  M 6 X 12
25 N 011 524 7washer   4
  A 6,4
26 944 501 493 00mounting Left 1
(26) 944 501 494 00mounting Right 1
27 944 501 096 00bracket   1
 GRVprime coated
28 944 501 731 00support   2
 GRVprime coated
29 944 501 873 00reinforcement Left 1

Pos__Part_Number__DescriptionRemarkQty.Model
 GRVprime coated
(29) 944 501 874 00reinforcement Right 1
 GRVprime coated
30 951 501 251 00bracket   1
31 944 503 523 01support Left 1
 GRVprime coated
(31) 944 503 524 01support Right 1
 GRVprime coated
32 951 504 321 01air duct   1
33 999 591 342 02clamp   5
34 477 819 212clamp   4
35 941 501 755 10support Left 1 CABRIO
 GRVprime coated
(35) 941 501 756 10support Right 1 CABRIO
 GRVprime coated
36 944 501 719 00foot support Left Hand Drive 1
 GRVprime coated
-944 504 112 01water protection hydraulic unit   1 M 593
