Porsche 968 Side Section Teile

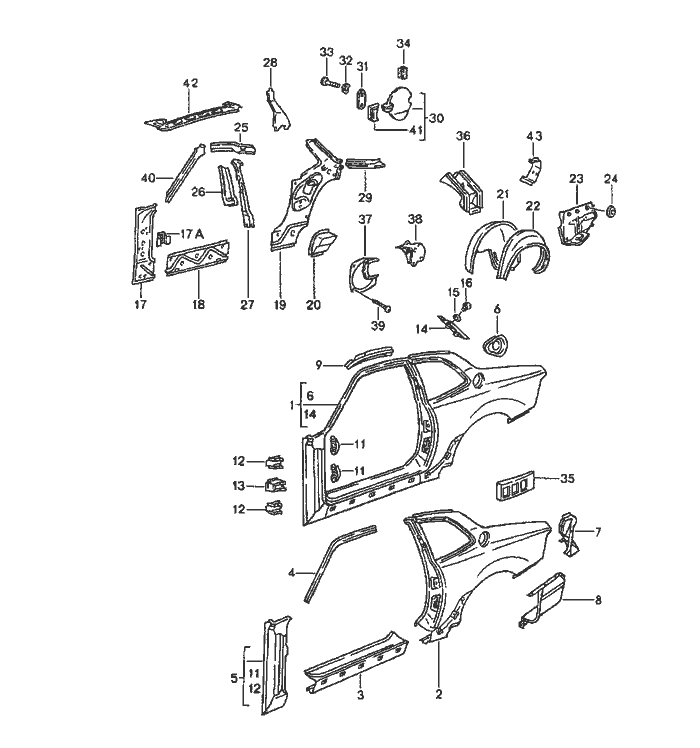

Side Section


Pos__Part_Number__DescriptionRemarkQty.Model
  side section    COUPE
1 944 503 061 10side section Left 1
(1) 944 503 062 10side section Right 1
2 944 503 903 04side section Left 1
  outer
(2) 944 503 904 04side section Right 1
  outer
3 944 503 611 01door sill Left 1
(3) 944 503 612 01door sill Right 1
4 944 503 517 00roof frame Left 1
(4) 944 503 518 00roof frame Right 1
5 944 503 605 01hinge pillar Left 1
(5) 944 503 606 01hinge pillar Right 1
6 944 503 068 00pot   1
  tank filler neck
7 951 502 215 00terminal piece Left 1
  outer
(7) 951 502 216 00terminal piece Right 1
  outer
8 944 503 417 00side section Left 1
  lower
(8) A 944 503 418 00side section Right 1
  lower
(8) 944 503 418 00side section Right 1
  lower
9 477 809 585filler plate Left 1
(9) 477 809 586filler plate Right 1
11 477 809 653mounting plate   4
12 477 809 655hinge reinforcement   4
13 477 809 625reinforcement   2
14 944 503 097 00reinforcement Left 1

Pos__Part_Number__DescriptionRemarkQty.Model
(14) 944 503 098 00reinforcement Right 1
15 928 504 355 02gasket   4
16 999 015 005 07half-round Schraube   4
17 477 809 393 Ahinge pillar Left 1
  use also:
  POS.17A /LL  1
(17) 477 809 394 Ahinge pillar Right 1
17A 944 502 373 00mounting   1
  switch
  rear lid release
18 477 809 433separator   2
19 944 502 901 04side section Left 1
  order also:
  POS.37   1
  POS.39   3
  M490:
  POS.38   1
  POS.39   4
(19) 944 502 902 04side section Right 1
  order also:
  POS.(37)   1
  POS.39   3
  M490:
  POS.(38)   1
  POS.39   4
20 944 502 387 00corner plate Left 1
(20) 944 502 388 00corner plate Right 1
21 944 501 043 00wheel housing Left 1
(21) 944 501 044 01wheel housing Right 1
22 944 502 401 00wheel housing Left 1
(22) 944 502 402 00wheel housing Right 1
23 944 502 425 01filler plate Left 1
(23) 944 502 426 02filler plate Right 1
24 803 803 583drain bush   X
(24) 021 119 569rubber sleeve   X M 650

Pos__Part_Number__DescriptionRemarkQty.Model
25 944 502 059 00side section Left 1
  upper
(25) 944 502 060 00side section Right 1
  upper
26 477 809 397centre pillar Left 1
(26) 477 809 398centre pillar Right 1
27 944 502 049 00reinforcement Left 1
(27) 944 502 050 00reinforcement Right 1
28 477 809 427closing element Left 1
(28) 477 809 428closing element Right 1
29 944 502 439 00reinforcement Left 1
(29) 944 502 440 01reinforcement Right 1
30 944 504 095 00flap   1 COUPE
  flap   1 CABRIO
  see group
  8/02/25
31 944 504 403 00desk pad   X
32 N 012 222 4spring washer   2
  A 5
33 900 146 106 07oval-head Schraube   2
  M 5 X 12
34 944 504 397 00stop   1
(35) 944 555 276 00filler piece Right 1
36 951 201 049 01cover   1
  lower part
  filler neck
37 944 504 621 00adapter Left92 1
  for
  loudspeaker
(37) 944 504 622 00adapter Right92 1
  for
  loudspeaker

Pos__Part_Number__DescriptionRemarkQty.Model
38 944 504 611 01adapter for loudspeaker Left92 1 M 490
38 944 504 611 01adapter for loudspeaker Left93 1
38 944 504 611 01adapter for loudspeaker Left941
(38) 944 504 612 01adapter for loudspeaker Right92 1 M 490
(38) 944 504 612 01adapter for loudspeaker Right93 1
(38) 944 504 612 01adapter for loudspeaker Right941
39 N 090 114 1tapping Schraube B 3,9 X 9,5   8
40 944 502 041 00side section inner Left 1
(40) 944 502 042 00side section inner Right 1
41 944 504 391 00hinge   1
42 944 502 581 00reinforcement Left 1 M 650
(42) 944 502 582 00reinforcement Right 1 M 650
43 945 502 261 00mounting three-point seat belt Left 1
(43) 945 502 262 00mounting three-point seat belt Right 1
