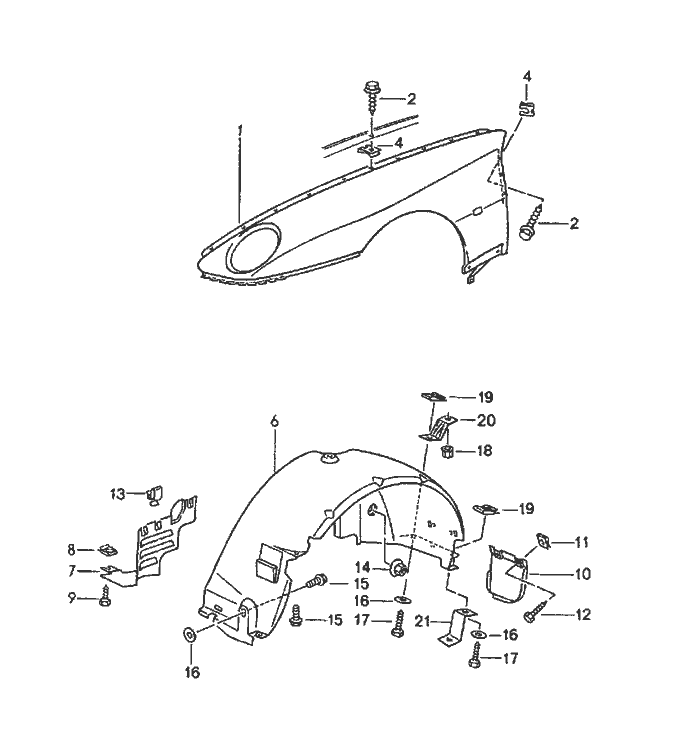

Porsche 968 Wing Teile

Wing


Pos__Part_Number__DescriptionRemarkQty.Model
  wing
(1) 944 503 021 01wing Left 1
(1) 944 503 022 01wing Right 1
2 N 090 172 1combination Schraube   22
3 N 013 891 1tapping Schraube   24
  6,3 X 19
4 999 507 003 02speed nut   24
  B 6,3 X 17
5 N 011 524 7washer   2
  A 6,4
6 944 504 381 10wheel-housing liner Left 1
(6) 944 504 382 11wheel-housing liner Right 1
7 944 504 385 01extension Left 1
  wheel-housing liner
(7) 944 504 386 01extension Right 1
  wheel-housing liner
8 999 591 699 02speed nut   2
  4,8
9 900 187 138 00combination tapping Schraube   2
  B 4,8 X 22
10 944 504 567 00lid Left 1
(10) 944 504 568 00lid Right 1
11 999 591 485 02speed nut   4
  B 4,8
12 900 143 159 07combination Schraube   4
  B 4,8 X 19
13 999 507 420 02clamp   2
14 999 049 022 40plastic nut   8
  T 5
15 900 075 355 02combination Schraube   4
  M 6 X 16
16 N 011 666 7washer   6
  B 6,4

Pos__Part_Number__DescriptionRemarkQty.Model
17 N 013 891 1tapping Schraube B 6,3   4
18 999 049 008 40plastic nut T 5   2 COUPE
19 999 591 486 02speed nut 6,3   4
20 944 504 281 01support   2 COUPE
 GRVprime coated
21 944 504 893 00support Left 1 COUPE
 GRVprime coated
(21) 944 504 894 00support Right 1 COUPE
 GRVprime coated
(21) 944 504 893 01support Left 1 CABRIO
 GRVprime coated
(21) 944 504 894 01support Right 1 CABRIO
 GRVprime coated
