Porsche 968 Vorder Apron Teile

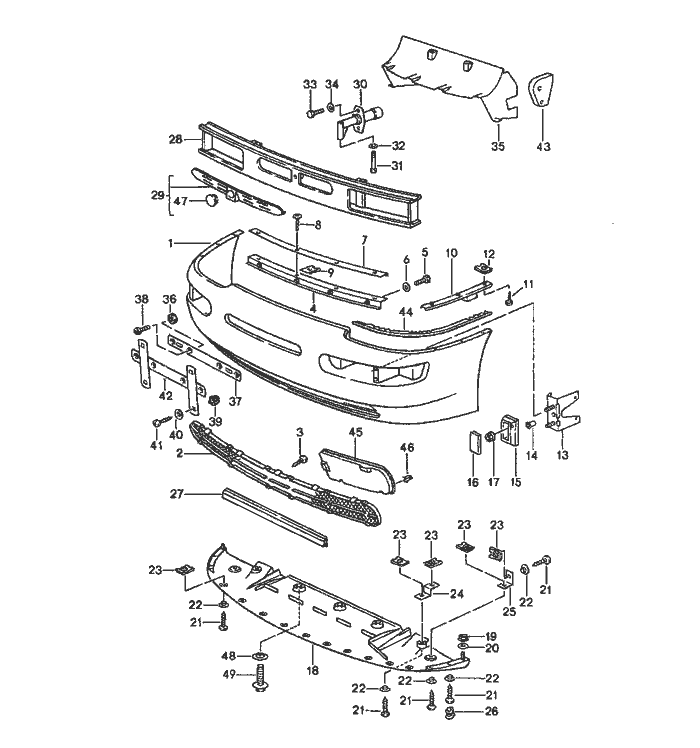

Vorder Apron


Pos__Part_Number__DescriptionRemarkQty.Model
  front apron
  bumper
1 A 944 505 113 00lining   1
 G2Xprime coated
1 944 505 113 02lining   1
 G2Xprime coated
(1) A 944 505 113 01lining   1 M 288
 G2Xprime coated
(1) 944 505 113 03lining   1 M 288
 G2Xprime coated
2 944 505 121 00ventilation grille   1
3 999 919 020 08oval-head Schraube   18
  M3X16
4 944 505 145 00retaining strip   1
5 900 075 260 02hexagon-head bolt   4
  M6X16
6 N 011 666 7washer   4
  B6,4
7 944 505 143 00rail   1
8 900 145 092 07tapping Schraube   4
  B4,8X22
9 999 591 699 02speed nut   7
  B4,8
10 944 505 173 00retaining strip Left 1
(10) 944 505 174 00retaining strip Right 1
11 900 187 138 00combination tapping Schraube   11
  B4,8X22
12 999 591 485 02speed nut   7
  B4,8
13 944 505 385 00reinforcement Left 1
(13) 944 505 386 00reinforcement Right 1

Pos__Part_Number__DescriptionRemarkQty.Model
14 999 500 055 02blind rivet nut   2
15 944 505 357 00protective bar Left 1
 01Csatin black
(15) 944 505 358 00protective bar Right 1
 01Csatin black
16 944 505 763 00cap Left 1
 01Csatin black
(16) 944 505 764 00cap Right 1
 01Csatin black
17 900 377 009 02hexagon nut   4
  M5
18 944 505 075 00lining   1
 01Csatin black
19 900 910 007 02lock nut   2
  M5
20 900 151 027 02washer   2
  B5,3
21 900 143 085 07tapping Schraube   19
  B4,2X16
22 951 505 157 00spacer   15
23 N 902 689 01speed nut   19
  B4,2
24 944 505 359 00support   2
25 951 505 355 00bracket   2
26 944 505 347 00stopper   2
 01Csatin black
27 944 505 523 00piping   1
28 944 505 010 00bumper   1
29 944 505 131 00trim cover   1

Pos__Part_Number__DescriptionRemarkQty.Model
 01Csatin black
30 944 505 017 04impact absorber   2 M 058
31 900 067 084 02pan-head Schraube   2
  M12X110
32 900 025 009 02washer   2
  A13
33 900 075 339 08hexagon-head bolt   4
  M8X30
34 900 025 007 02washer   4
  A8,4
35 944 575 141 00air duct   1
(35) 944 575 141 01air duct   1 M 573
36 928 701 133 02spacer   2
37 944 701 121 00support   1
38 N 014 001 1tapping Schraube   2
  B4,8X25
39 999 591 498 40special nut   X
40 N 011 522 8washer   4
  A4,3
41 900 143 134 00tapping Schraube   4
  BZ4,2X9,5
42 928 701 050 03support   1
43 951 575 137 01grommet   1 M 573
44 944 505 531 00piping Left 1
 01Csatin black
(44) 944 505 532 00piping Right 1
 01Csatin black
45 944 505 561 00cover   1 M 480
46 999 591 773 03clamp   3 M 480
47 944 505 103 00cap   1

Pos__Part_Number__DescriptionRemarkQty.Model
 01Csatin black
48 944 503 257 00spacer  3
49 900 075 422 00combination Schraube  3
  M6X20
