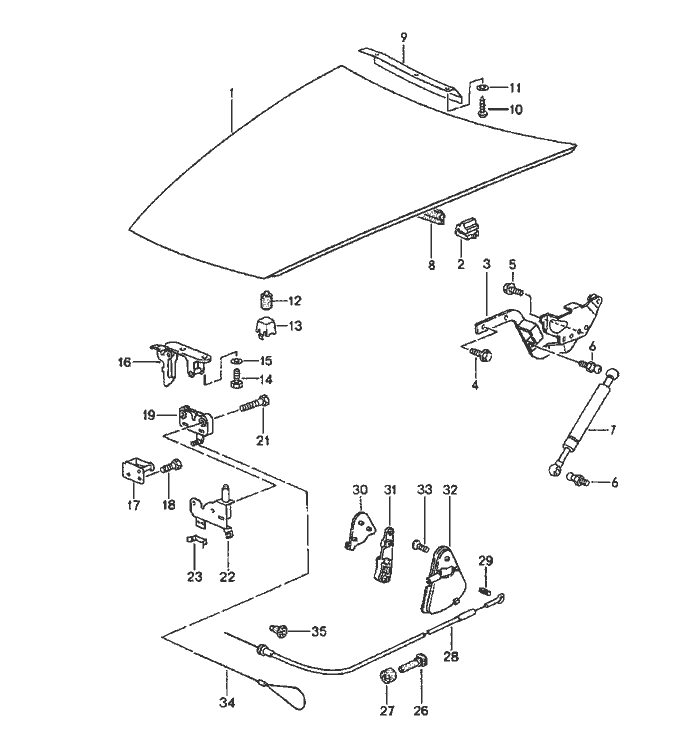

Porsche 968 Lid Teile

Lid


Pos__Part_Number__DescriptionRemarkQty.Model
  lid
  front
  actuator
1 944 511 005 13lid   1
2 944 511 485 00filler piece   2
3 944 511 301 01lid hinge Left 1
(3) 944 511 302 01lid hinge Right 1
4 N 014 331 2hexagon-head bolt   4
  M 8 X 18
5 N 902 180 01combination Schraube   4
  M 8 X 16
6 999 167 042 02ball pin   4
7 944 511 351 03gas-pressure spring   2
8 928 511 141 04gasket   1
  it is necessary to rework
9 944 511 201 01tab washer Left Hand Drive 1
10 900 143 157 07combination Schraube Left Hand Drive 3
  BZ4,2X13
12 999 703 140 40rubber buffer   2
13 928 511 203 02support   2
14 999 072 005 09hexagon-head bolt   2
  M 6 X 12
15 N 015 404 1washer   2
  A 6,4
16 944 511 051 00lid lock   1
  upper part
17 944 511 431 00mounting   1
18 900 075 260 02hexagon-head bolt   2
  M 6 X 16
19 944 511 027 00lid lock   1
  lower part
21 900 075 378 02combination Schraube   2
  M 6 X 35

Pos__Part_Number__DescriptionRemarkQty.Model
22 944 511 331 00mounting  1
23 999 591 998 00spring clamp  1
26 477 823 591grommet  1
27 477 823 593stopper  1
28 944 511 037 01bowden cable  1
29 900 197 018 00roll pin 4 X 12  1
30 928 511 143 02cover  1
 70Bblack
31 928 511 175 02pull handle  1
32 928 511 173 02cup  1
33 900 249 001 02countersunk-head Schraube M 6 X 15  2
34 964 512 521 00emergency operation  1
35 911 612 132 00grommet  1 968CS
