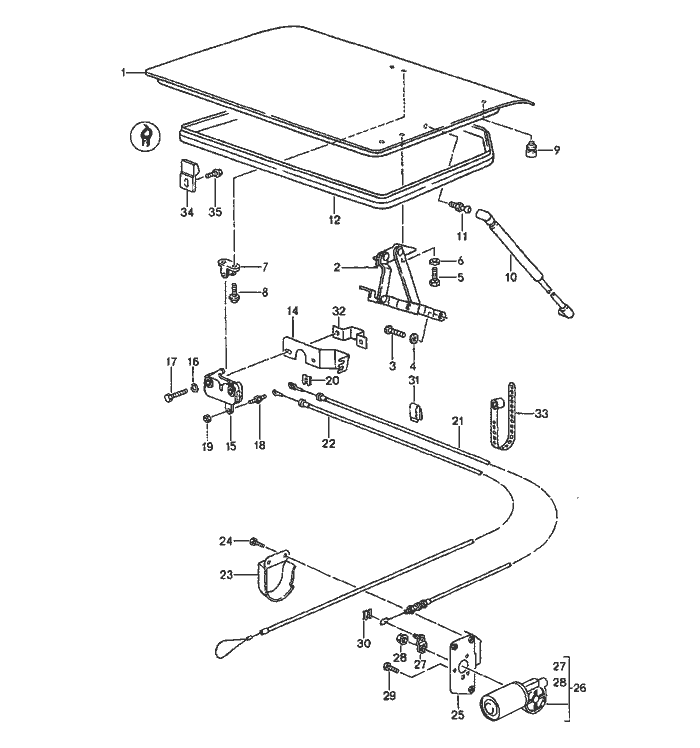

Porsche 968 Hinter Lid Teile

Hinter Lid


Pos__Part_Number__DescriptionRemarkQty.Model
  rear lid    CABRIO
1 941 512 107 10lid   1
2 941 512 131 12lid hinge Left 1
 GRVprime coated
(2) 941 512 132 12lid hinge Right 1
 GRVprime coated
3 900 075 366 02combination Schraube   4
  M 8 X 16
4 900 151 008 02washer   4
5 900 075 366 02combination Schraube   4
  M 8 X 16
6 900 151 008 02washer   4
7 941 512 103 10lock upper part   1
8 N 902 180 01combination Schraube   2
  M 8 X 16
9 A 999 703 140 40rubber buffer  -92 2
9 999 703 140 40rubber buffer   2
10 941 512 349 11gas-pressure spring   2
11 941 512 341 10ball pin   4
12 941 504 351 10seal for rear lid   1
14 941 512 793 10mounting plate   1
15 944 511 027 00lock lower part   1
  it is necessary to rework
16 N 012 007 2lock ring   2
17 900 074 015 02hexagon-head bolt   2
  M 6 X 30
18 941 512 729 10threaded bolt   1
19 900 910 004 02hexagon nut   1
  M 4
20 999 166 054 02sl-lock   1

Pos__Part_Number__DescriptionRemarkQty.Model
21 941 512 097 10bowden cable  1
  electric
22 941 512 197 10bowden cable  1
  manually
23 941 512 791 10cap  1
24 999 217 049 08hexagon-head bolt  3
  M 5 X 12
25 941 502 629 11mounting plate  1
26 951 624 024 01electric motor  1
27 944 624 814 00lever  1
28 999 084 045 02nut  1
29 999 217 004 02hexagon-head bolt  2
  M 6 X 12
30 999 166 054 02sl-lock  1
31 944 628 181 00retaining clip  2
32 941 502 635 10support  1
33 999 513 049 40tie-wrap  2
34 941 504 571 10stop  2
35 N 014 325 1hexagon-head bolt  2
  M 5 X 14
